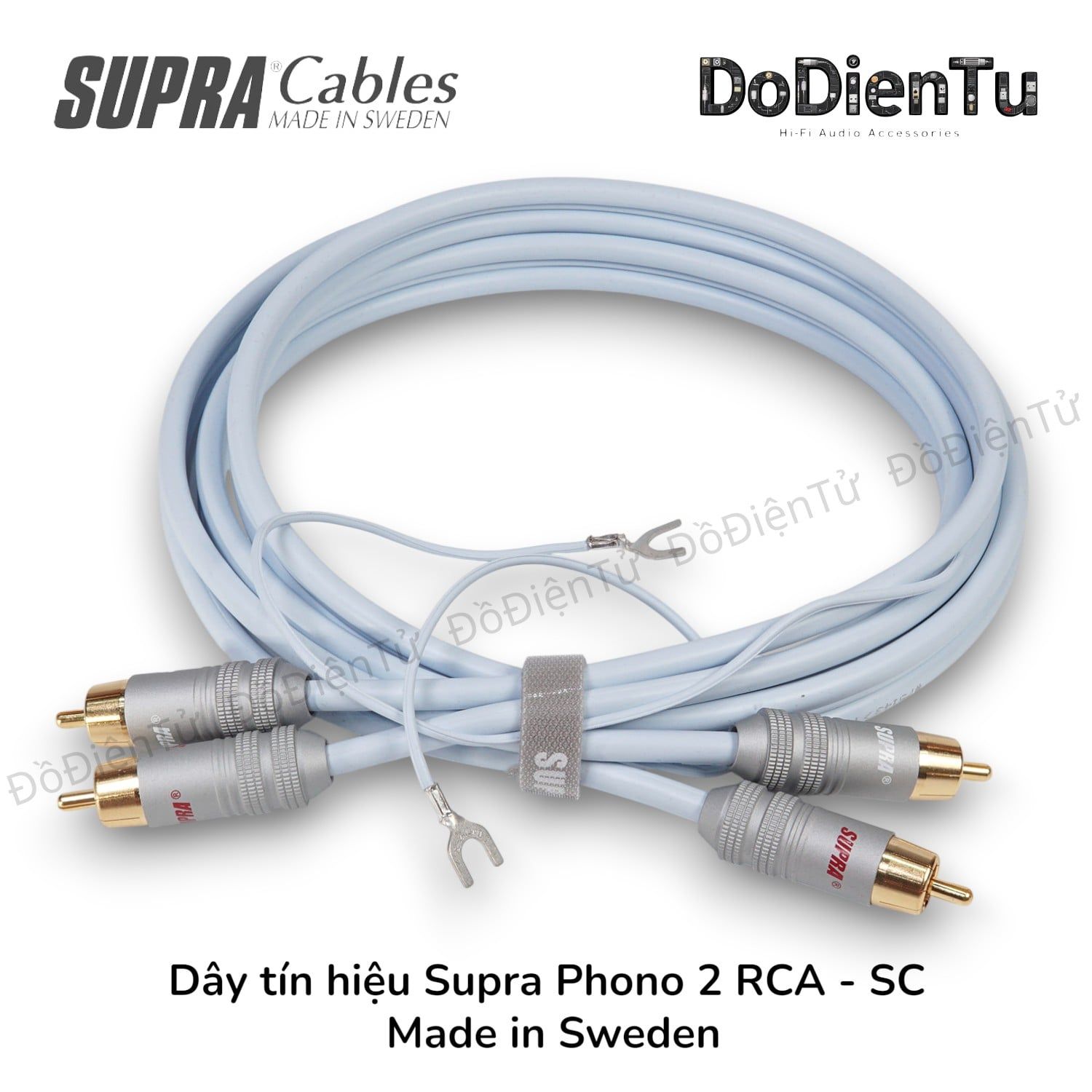

Dây tín hiệu Supra PHONO 2 RCA-SC AUDIO Phiên bản kỷ niệm 40 năm

2,240,000₫ 1,904,000₫

PHONO 2RCA-SC AUDIO

Supra Phono 2RCA-CS is a phono cable we are proud to announce as one of our 40TH Anniversary offer. The cable is a dual channel connection between a turntable and a RIAA phono stage or a receiver with a dedicated phono input including the Earth Link required for most turntable connections. Supra Phono's low capacitance and thanks to the new carbon/nylon shield, its noise interference immunity, make a dead silent cable suitable for low output moving coil cartridges. Further the low capacitance allow for best transient response, without damping or slowing down the musical beat.

Features and benefits

  • Efficient shielding makes a dead silent cable provides maximum signal integrity also for moving coil cartridges
  • Earth Link efficiently cancels any ground (earth) potential hum
  • Suppress RFI interference that are highly malignant for the noise floor
  • Lavish RCA-CS connectors provides excellent electrical properties, 100% shielding and gentle chuck lock cable strain relief
  • Unbeatable price-performance ratio
  • Made in Sweden!

Technical Info

Mechanical data

Number of leads, totally (specified)7 (+, - and drain x two channels + EarthLink)pieces
Lead area0.24mm2
Number of strands per lead19pieces
Strand dimensionØ 0.127mm
Strand materialTin plated Oxygen-free 5N Copper
Di-electric (Insulation)PE
ShieldCarbon/Nylon shield
JacketAge and heat resistant PVC
ConnectorsSupra RCA-SC chuck lock strain relief
Outer dimension per leadØ 6.0mm
Cable weight (without connectors)48g/m



Electrical properties

Resistance72Ω/km
Capacitance52pF/m
Velocity factor0.66x C (speed of light)
