CHORD - HUGO TT

103,970,000₫ 91,500,000₫

CHORD ELECTRONICS - HUGO TT

Là phiên bản nâng cấp của Hugo để tương thích với những bộ dàn audio cao cấp cố định. Hugo TT sử dụng chip FPGA Spartan 6 và bộ lọc số WTA mới nhất cho chất lượng âm thanh với độ phân giải cực cao.
Máy được trang bị bộ pin sạc bên trong kết hợp với siêu tụ 10.000.000MFD đảm bảo nguồn điện sạch liên tục. Hugo có các cổng vào USB 2.0 type B, Coaxial, AES/EBU, cổng quang cùng với giao tiếp Bluetooth atpX, đồng thời với các ngõ ra chuẩn audiophile như jack headphone 1/4'' , XLR và RCA. Tần số lấy mẫu lên tới 32bit 384kHz, tương thích DSD64, DSD128. Hugo TT được tạp chí What Hi-Fi? đánh giá là DAC có độ động cao nhất của năm 2014.

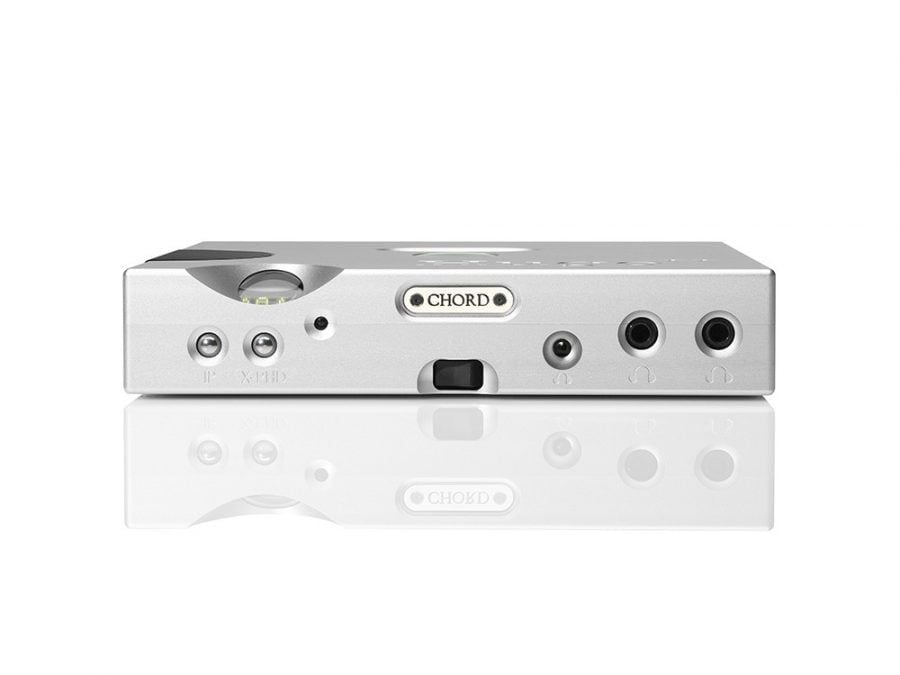

Hugo-TT-Front-900x675

Hugo-TT-Rear-900x675

CHORD ELECTRONICS - HUGO TT

With the new Hugo TT (Table Top) we’ve built on the extraordinary success of our genre-defining Hugo DAC/headphone amplifier. The new larger desktop-orientated device offers greater connectivity including a USB-B input, XLR outputs, two quarter inch headphone outputs, plus improved performance and features.

Compared to the more mobile Hugo, the Hugo TT gains a new larger chassis, remote control, an alphanumeric LED display with input/sample rate data, and improved sonic performance thanks to supercapacitors. Find out why Trusted Reviews considers the Hugo TT the best headphone amp they’ve ever heard, regardless of price, here.

Advanced sample rate capability

The Hugo TT is ready to take advantage of today’s advanced studio-master-quality (DXD) music files allowing music lovers to experience music in true high definition, along with the best possible reproduction of CD-quality music. Hugo TT supports up to 32-bit/384kHz audio via coax and USB, and 24-bit/192kHz over optical, plus DSD64 on all inputs and DSD128 via coax or USB (all via DoP).

In a key upgrade over the original Hugo, the Hugo TT benefits from a high-quality asynchronous B-type USB connection for both the SD and HD USB input. With two further digital inputs: a (new) BNC coaxial and optical (TOSLink), any connected component with a digital output can benefit from the Hugo TT’s advanced sound quality.

Bluetooth

To fully integrate with today’s digitally stored media, the new Hugo TT also has A2DP Bluetooth capability and uses a custom-made module with the aptX codec to feed a digital signal directly into the DAC circuitry, so even without cables, music can still be enjoyed.

Spartan 6 FPGA

The Hugo TT retains the same high-performance Spartan 6 FPGA that enabled Hugo to redefine the DAC genre in 2014. It has the same specification and measured performance as its mobile sibling, a device that “broke all records” for dynamic range in leading UK hi-fi magazine, Hi-Fi World, in the summer of 2014.

Supercapacitors

Being a home-orientated device, the Hugo TT has been designed to run continuously from the supplied charger, however Chord’s engineers have also improved the battery and added Supercap energy storage, a technology seen in F1 where supercacitors back-up the cars batteries by sharing the load and charge demands, thereby protecting them. They serve a similar purpose in the Hugo TT, extending the battery life as well as improving dynamics and demanding transients in recorded music.

THÔNG SỐ KỸ THUẬT



MATERIALS
Clamshell precision machined aluminium casing with steel ball bearing buttons, gloss black acrylic signal window, glass viewing portal, and dot matrix display. Available in a choice of two colours – natural silver, and satin black
BATTERY
4x Rechargeable custom Enix Energies 3.7v 9.6Wh Li-ion (lithium-ion (2600mAh) batteries
TAP LENGTH FILTER
26,368 – 4 element Pulse Array design
SUPER CAPACITOR
10,000,000μF
PLAY TIME
In excess of fourteen (14) hours
CHARGING
Nominal four (8) hours via included 9v 1a charger
INPUTS
USB Type-B (White): 44.1kHz – 384kHz – 16bit – 32bit
COAX (BNC) (RED)
44.1kHz – 384kHz – 16bit – 32bit
OPTICAL (GREEN)
44.1kHz – 192kHz – 16bit – 24bit
BLUETOOTH
Bluetooth (Apt X) (Blue): 44.1kHz – 48kHz – 16bit
OUTPUTS
2x ¼” jack headphone output
1x 3.5mm jack headphone output
1x stereo (L & R) unbalanced RCA output
1x stereo (L & R) unbalanced XLR output
PCM SUPPORT
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 358.8kHz, and 384kHz
DSD SUPPORT
DSD transmitted via DoP. DSD64 (Single) to DSD256 (Quad-DSD)
VOLUME CONTROL
Digital, activated in 1dB increments
LINE-LEVEL MODE
Activated via dual press of Input and Crossfeed upon startup
DRIVER SUPPORT
Driverless with Mac OS X and Linux, driver required for Windows OS
CROSSFEED
Off – No Crossfeed, Level 1 – Light, Level 2 – Medium, Level 3 – Heavy
