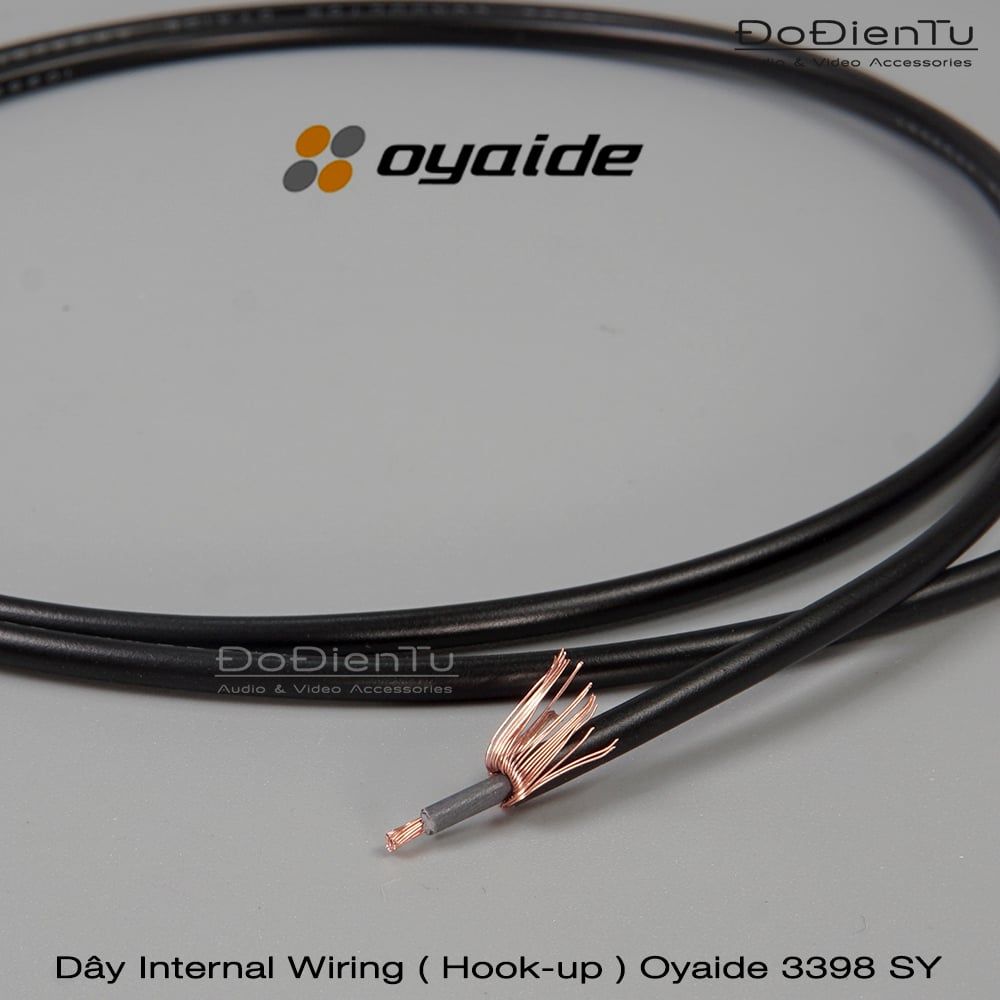

Oyaide Hook up 3398 - SY

Adopt a precise conductor 102 SSC proud of ELEC electricity

• Adopt a 2.0mm single line consisting of a precision conductor 102 SSC proud of ELEC is the conductor.
• To avoid inclusion of impurities as much as possible, using only virgin copper containing no recycled copper among the copper conforming to JIS C1011.
• 100% removal of the impurities adhering to the surface by performing peeling process.
• To facilitate the flow of electrical signal flowing through the conductor surface layer, thinned with natural diamond dies, improve the surface smoothness of the strand.
• It thinned wire by the machining accuracy of the standard error tolerance ± 8μm far surpass ± 1μm a.
• In stranded wire process, it adopted the world's first high-density different 径導 body 3E twisted structure (patented).
• Increase the density and roundness of strands, stabilize the electric characteristics.
• Annealing processing over 2 degrees, eliminating the mechanical stress-strain of the strand.
• Product management and thorough manufacturing control numerical value, maintenance, and shipping dates.
• Conductivity is achieved 102.3% IACS of the highest class.

3398 Series Features of

• Precision conductor "102SSC" the adopted audio equipment for the internal wiring material "3398 Series".
• Compliance with US UL standard AWM Style 3398 (except 3398-SY).
• ELEC using a precision conductor "102SSC" for audio in the electric original.
• The insulator has adopted a XLPE with enhanced molecular structure (cross-linked polyethylene) by electron beam irradiation.
• XLPE high heat resistance (rated 150 ℃), it shows a high withstand voltage (rated 300V, peak voltage 600V), less likely to melt in solder heat, has excellent workability.
• AWG16 / 18/22 in addition to the three types of conductor thickness of the single-core shield (3398-SY) also available.
• 3398-SY is to eliminate the gap between the wire spiral shield of 34 this configuration, excellent shielding effect. The PVC is employed in the outer sheath, ensure excellent flexibility.
• Internal wiring of the amplifier and speakers, such as the self-made audio cable, you can use a wide range of applications.
