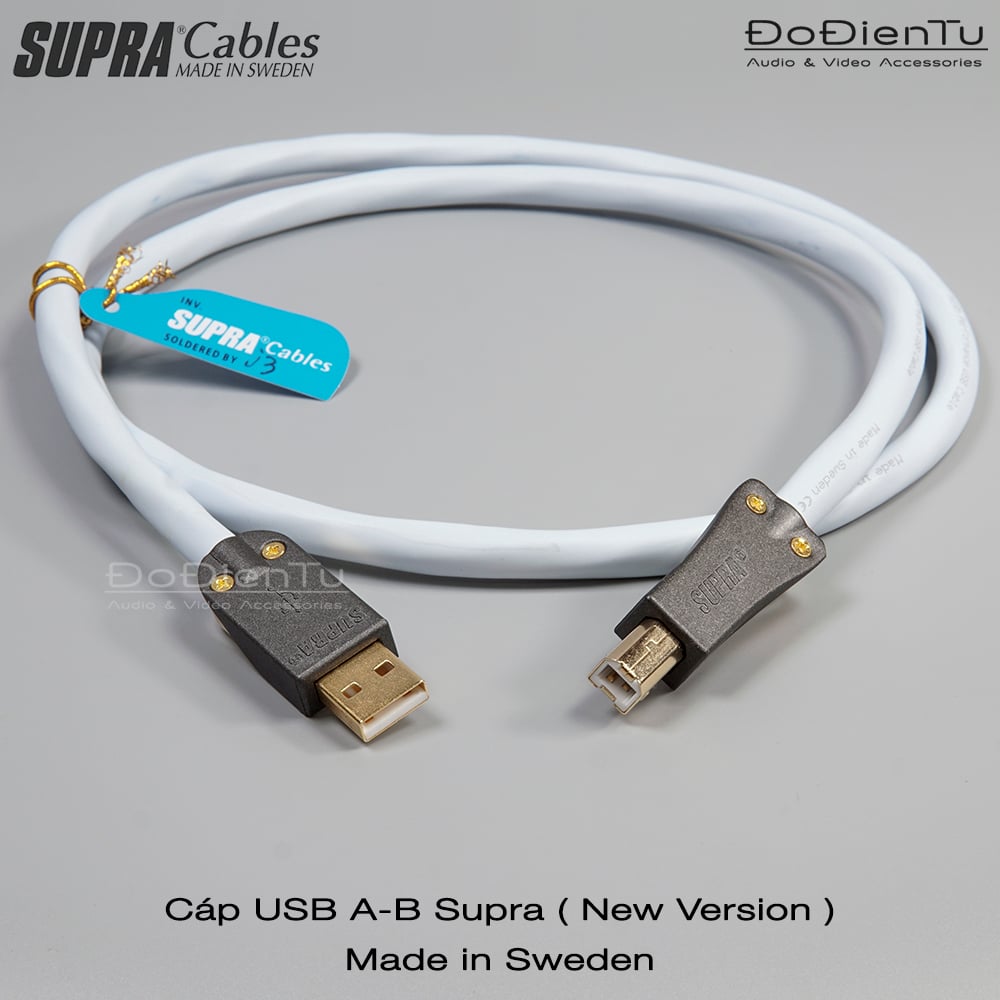

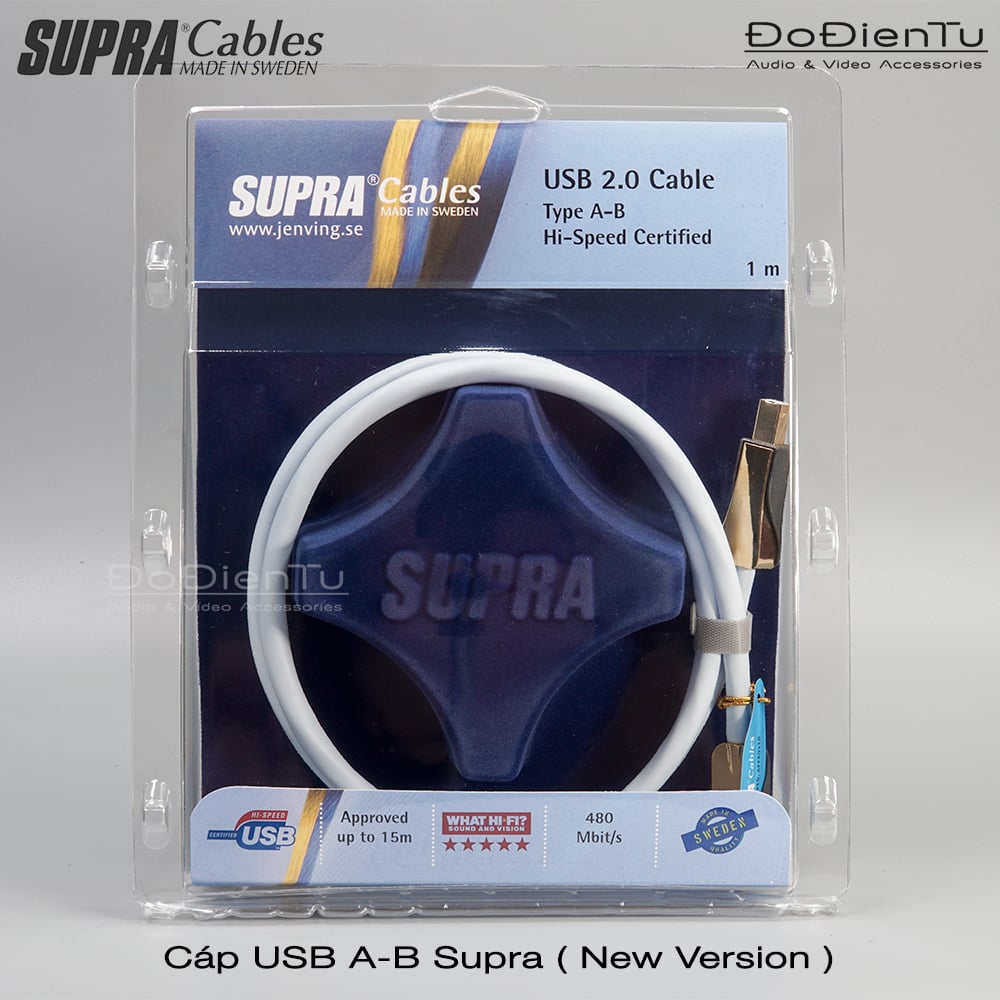

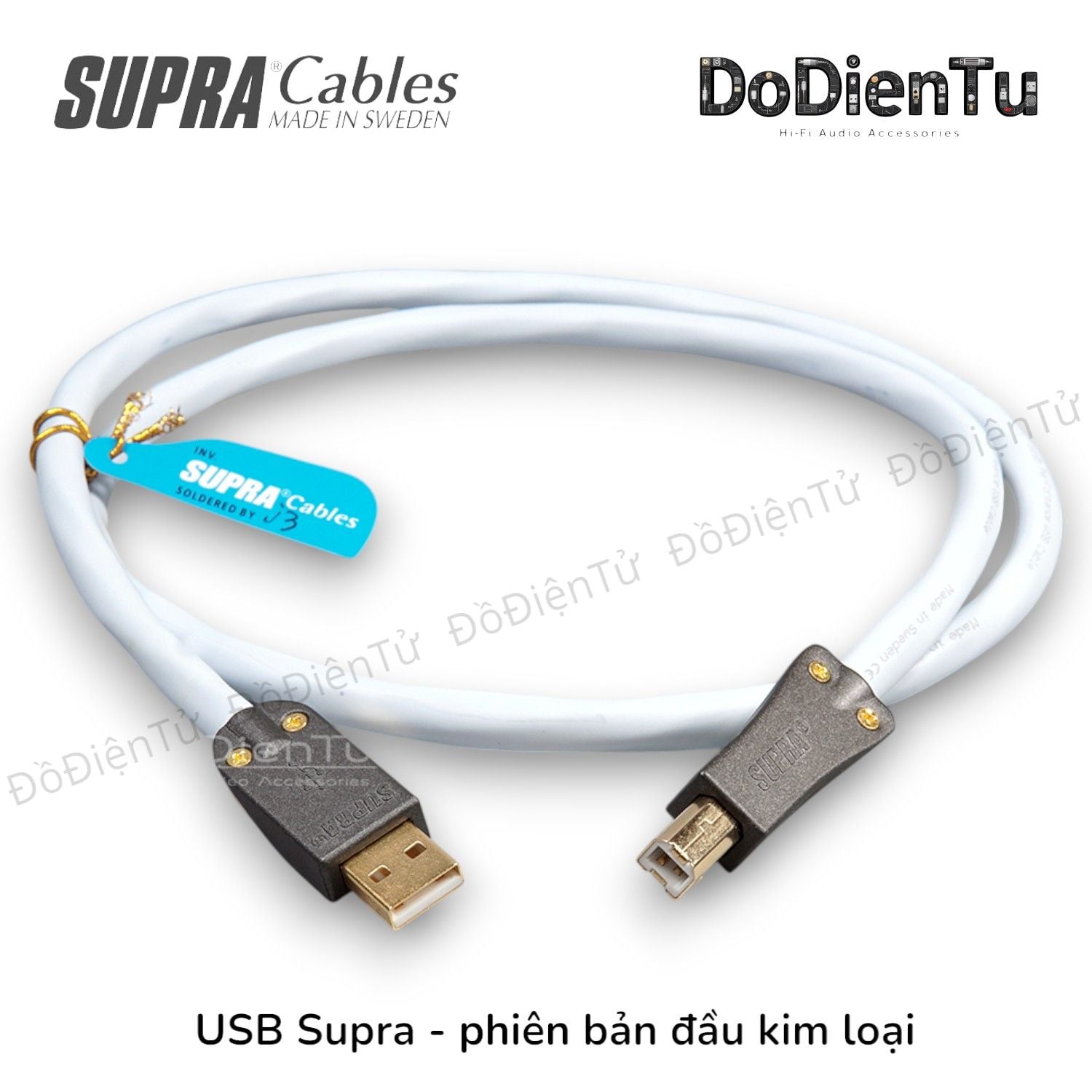

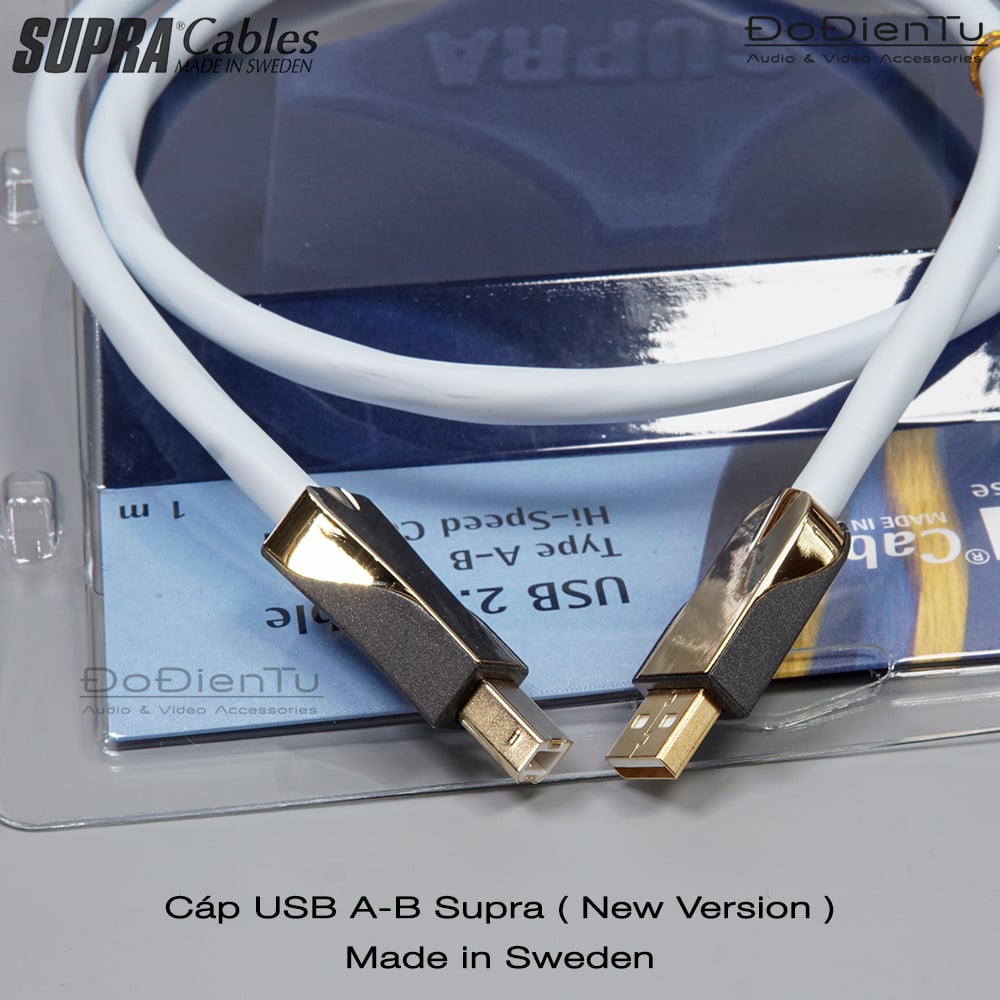

Cáp USB 2.0 Supra A to B

" Liên Hệ Bình 0909395052 để có giá tốt nhất "

860,000₫ 730,000₫

USB 2.0 A-B

SUPRA USB 2.0- Hi-Speed, Type A-B
The sales of USB devices has increased exponentially and we are proud to offer our impedance aligned cable for digital audio convertors, music streaming from computers, multimedia players, among a lot of other devices offering an USB interface. There is a great need for a standard specific, impedance aligned cable, since failed bit transmissions undoubtedly will be detected when listening to your music. The consequential error correction and number of transmission re-tries will leave audible traces.

Many USB interface users are accustomed to that the USB interface limits the distance between the devices, but not any longer. Supra USB 2.0 allows for distances up to 15 meters between your devices! The trick is as always, the shielding, separate for each pair of leads, correctly twisted leads and the exact impedance alignment of 90ohm, which is absolutely vital for USB applications for jitter-free transmissions. Supra USB 2.0 will reward you with a dynamic, rich and detailed music experience. Undoubtedly!

Note! Be careful in the use of ferrites. Not all ferrites are tuned correctly to be used with this high frequency data transfer cable without changing the electrical proporties of the cable to the point where the data transfer is corrupted and/or slowed down. This is a general notification for all digital interconnects. We have encountered HDMI cables not coming even close to the original excellent performance, thanks to later added ferrites with the benign intention of reducing RFI.

Features & benefits

  • Long cable approval - provides for long distances between devices without signal degradation
  • Correct data transfer - Excellent sound and rapidly working data peripherals without drop-outs
  • Perfect shielding and twinning - minimum signal degradation, a condition for the above
  • Robust type A and type B connectors - reliable, long service life also with frequent connections
  • Made in Sweden! - Modern research, production and quality

Technical Info

Mechanical Specifications

StandardUSB 2.0 Hi-Speed
ConnectorsUSB A male ► USB B male
Signal DirectionBi-directional
Application Examples Computer peripherals, DAC's
Data transfer rate480Mbit/s
Solder TinAlmit SR-34 Super
Cable strain reliefMolded connector housing


Electrical properties

Number of pairs2pieces
Lead area0.24 / 23mm/ AWG
Number of strands 19pieces
Strand dimensionØ 0.127mm
Lead materialTin plated oxygen-free 5N copper
InsulationLow capacitance PE
ShieldingAluminized PET foil
JacketHeat and age resistant PVC
Flame retardantNo
External dimensionØ 7.5mm

Electrical performance

Data transfer rate480Mbit / s
Resistance72Ohm / km
Capacitance52pF / m
Velocity factor0.66xC (speed of light)
