Supra Trico
The Supra Trico true 75 Ohm digital interconnects are designed for numerous digital and analogue transmissions that require a closely matched characteristic impedance with exceptional bandwidth, e.g. between computer and DAC, aerial cable and video transmissions.
Trico have the required high bandwidth to transfer the full digital spectrum with a well controlled signal integrity, display sufficient head room to max performance even for longer transmissions and extremely low capacitance, the most benign characteristic there is for transfering digital square waves.
Features and benefits

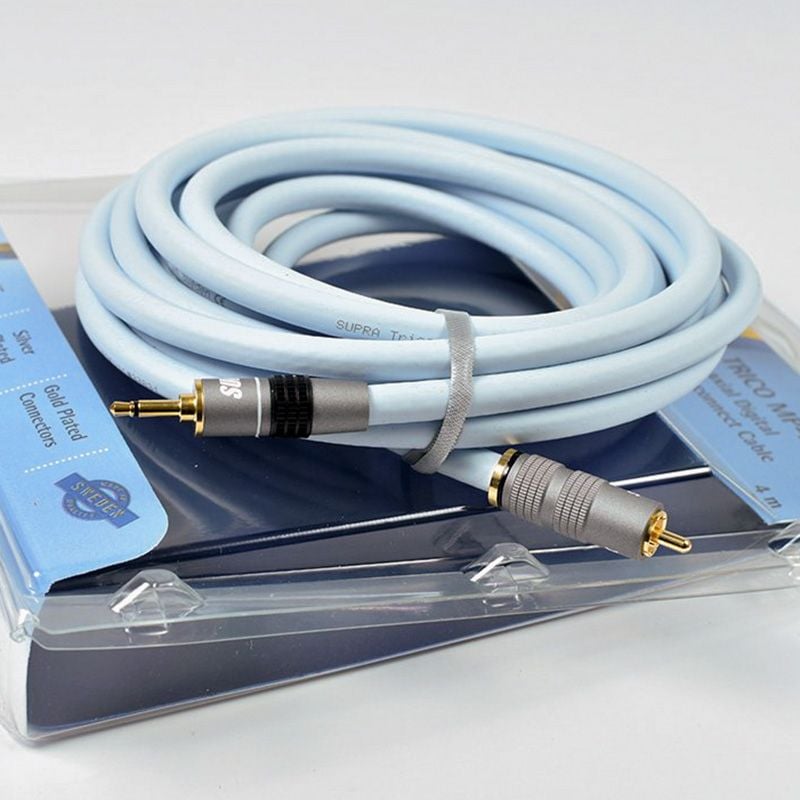

Supra Trico-RCA - Coaxial True 75 Ohm Cable
Supra Trico-RCA is a single-end interconnect with a Supra Trico cable and two (2) Supra PPX RCA contact. Suitable for e.g. CD drive to DAC or AV amplifier.
Mechanical Specifications
Cross section area | 0.71 / 19 | mm2 / AWG |
Number of strands per conductor | 7 | pieces |
Conductor diameter | 0.36 | mm |
Conductor material | Silver plated oxygen free 5N copper | |
Insulation | PE Foam (air filled) | |
Inner screen - Coverage | Silver plated oxygen free 5N copper braid >95 | % |
Inner screen insulation | PE | |
Outer screen - Coverage | Oxygen free 5N copper braid >90 | % |
Jacket | Heat & age resistant PVC | |
External diameter | 8.2 | mm |
Weight | Not applicable | g/m |
Electrical performance
Resistance | 8.1 | Ohm/km |
Inductance | 0.28 | µH/m |
Capacitance | 58 | pF/m |
Characteristic impedance | 75 | Ohm |
Velocity factor | 0.78 | x C (speed of light) |
