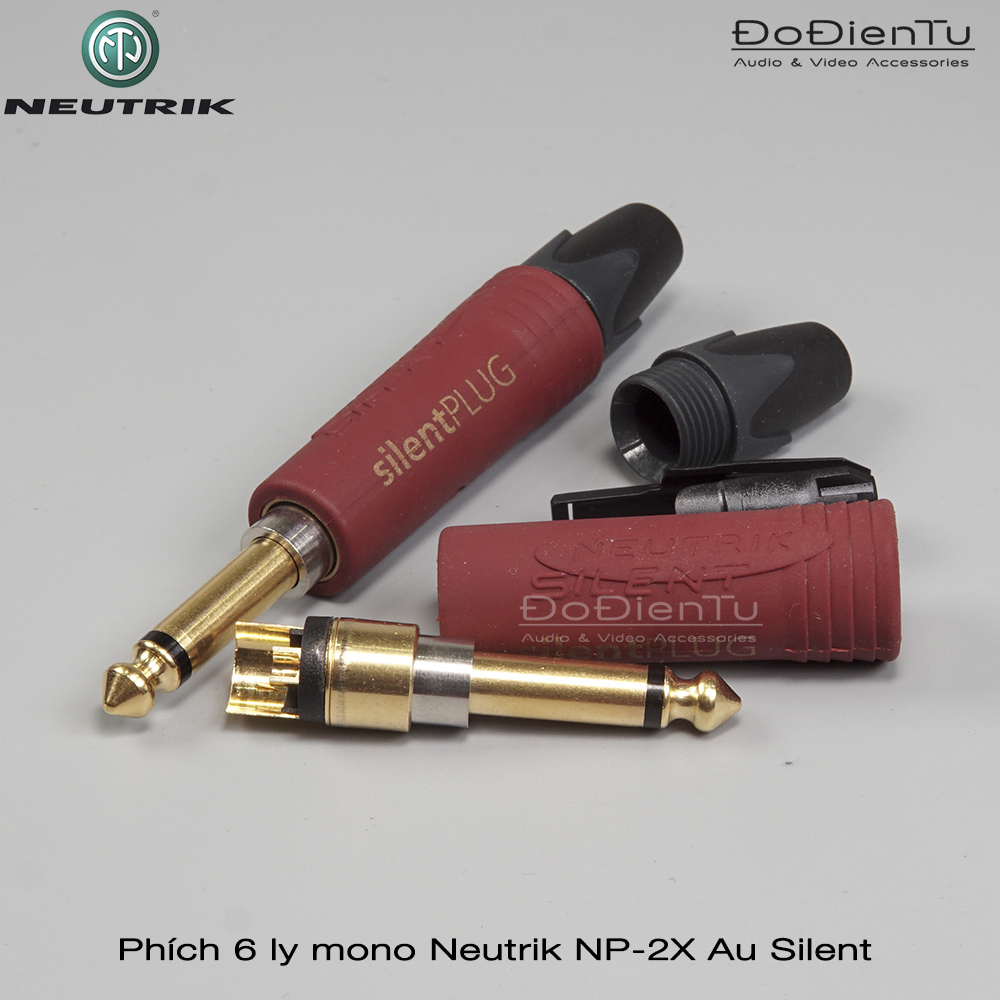

NEUTRIK NP2X AU SILENT

NP2X-AU-SILENT

2 pole 1/4" professional phone plug, gold plated contacts, red rubber overlay, silent switch

The silentPLUG automatically mutes (shorts) an instrument (guitar) cable to avoid pops and squeals when changing the instrument (guitar) under load. The integrated silent switch is based on REED-technology and guarantees a lifetime beyond 10 '000 mating cycles. The new PX silentPLUG features a rugged metal shell enhanced with a rubber cushion overlay for improved shock protection

NEUTRIK NP2X AU SILENT Feature

• Avoid pops and squeals
• Hermetically sealed switching contacts
• Lifetime beyond 10'000 mating cycles
• Slim plug with industry proven and reliable chuck type cable strain relief
• Sleek attractive design for convenient handling and connections
• Rubber overlay on straight housing for best shock-protection and reliability
• L-D versions available which accommodates cable O.D. up to 8 mm

ATTENTION!

For use with instrument (guitar) applications only. Damage may occur if connected to amplifier output.

Please note that the signal isn't muted with some types of active electric guitars which are equipped with tip-ring-sleeve jacks that tap to activate the guitar power supply.

Specifications of NEUTRIK NP2X AU SILENT

Product

• Title NP2X-AU-SILENT
• Connection Type Plug
• Gender male

Electrical

• Contact resistance depends on mating connector mΩ
• Dielectric strength 0.2 kVdc
• Insulation resistance > 2 GΩ (initial)
• Rated current per contact depends on mating connector A
• Rated voltage < 50 V

Mechanical

• Cable O.D. 4 - 7 mm
• Lifetime > 1000 mating cycles
• Wiresize 1 mm²
• Wiresize 18 AWG
• Wiring Solder contacts

Material

• Bushing Polyacetal (POM) + PU
• Contact plating 0.2 µm Au
• Contacts Brass (CuZn39Pb3)
• Insert Polyamide (PA 6.6 30 % GR)
• Shell Brass (CuZn39Pb3)
• Strain relief Polyacetal (POM)
