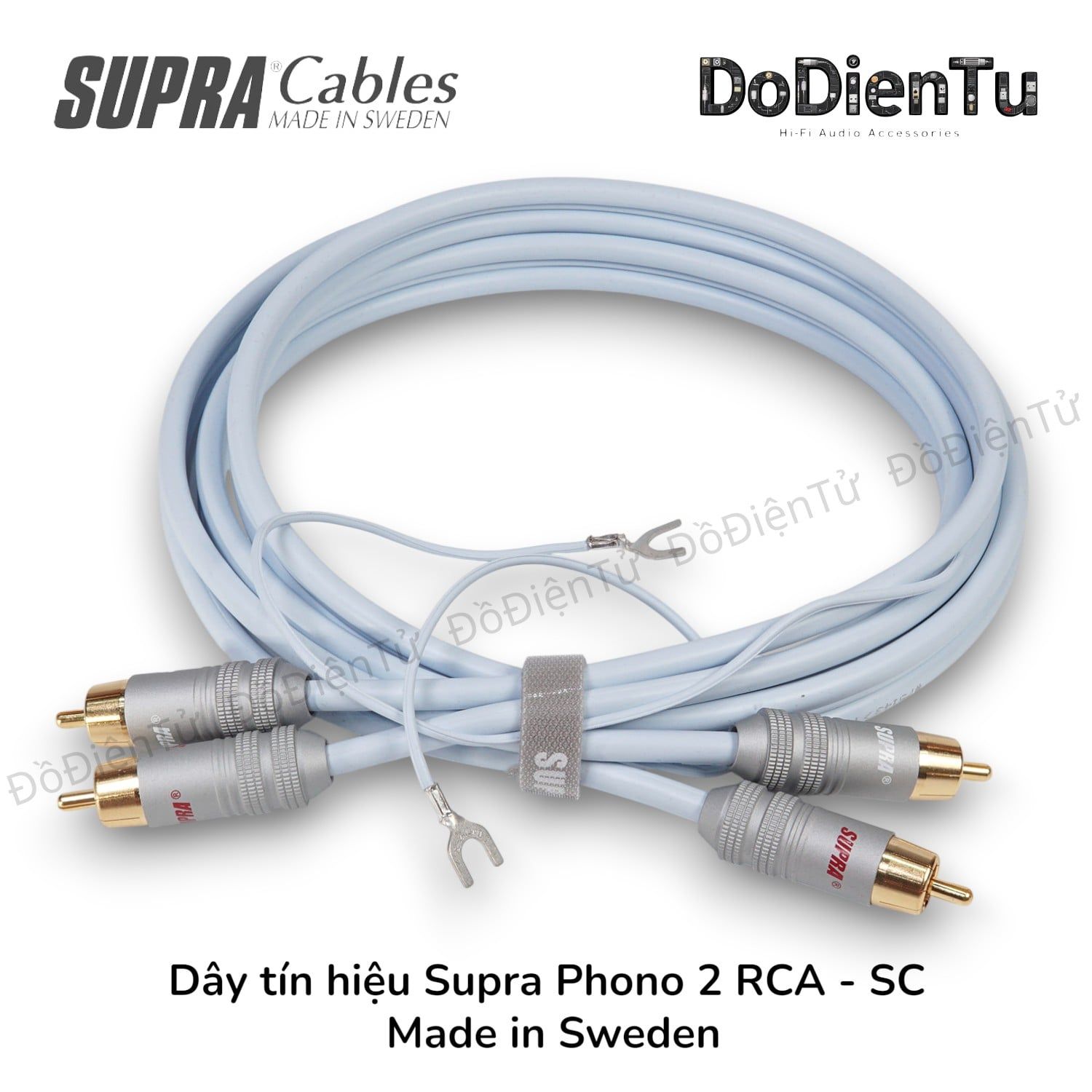

Supra Phono 2RCA-CS is a phono cable we are proud to announce as one of our 40TH Anniversary offer. The cable is a dual channel connection between a turntable and a RIAA phono stage or a receiver with a dedicated phono input including the Earth Link required for most turntable connections. Supra Phono's low capacitance and thanks to the new carbon/nylon shield, its noise interference immunity, make a dead silent cable suitable for low output moving coil cartridges. Further the low capacitance allow for best transient response, without damping or slowing down the musical beat.
Features and benefits
Mechanical data
Number of leads, totally (specified) | 7 (+, - and drain x two channels + EarthLink) | pieces |
Lead area | 0.24 | mm2 |
Number of strands per lead | 19 | pieces |
Strand dimension | Ø 0.127 | mm |
Strand material | Tin plated Oxygen-free 5N Copper | |
Di-electric (Insulation) | PE | |
Shield | Carbon/Nylon shield | |
Jacket | Age and heat resistant PVC | |
Connectors | Supra RCA-SC chuck lock strain relief | |
Outer dimension per lead | Ø 6.0 | mm |
Cable weight (without connectors) | 48 | g/m |
Electrical properties
Resistance | 72 | Ω/km |
Capacitance | 52 | pF/m |
Velocity factor | 0.66 | x C (speed of light) |
