Dây loa van den Hul - The Super Nova Mounting

Thương hiệu : Van Den Hul

Xuất Xứ : Chính Hãng Phân Phối - Made In Eu

Loại : Dây loa Quad-Lead

" Four SCS-6 leads, an extra screen and a semi-transparent red outer mantle that waters your mouth: those are the ingredients of this top-end speaker cable, designed to put as much quality metal between your power amp. and speakers as you could possibly need.

Ever! This cable is applicable in all bi-wire and regular amp-speaker connections. Also highly appreciated in the high quality car-audio market for its excellent sonic properties and, certainly not unimportant, beautiful “looks” "

Liên hệ

Van den hul - THE SUPER NOVA (HALOGEN FREE)



"Một trong những dây loa uy tín nhất trong chương trình của chúng tôi ..."

The SUPER NOVA là " BRIGHT STAR "  trong phân khúc dây loa nặng ký của chúng tôi.

Chiếc chìa khóa 4 lớp được che chắn này với các dây dẫn AWG 6 (13,4mm²) khổng lồ mang một lượng điện cực trong suốt GALACTIC, làm cho nó trở nên tuyệt vời để sử dụng trong các thiết bị hi-fi và PA cao cấp trung bình và cao.

Với thiết kế 4 lõi dây linh hoạt của nó, SUPER NOVA vượt trội so với các ứng dụng bi-wire và bi-amping


Twin lead: Với dây dẫn của nó kết hợp tiêu chuẩn Standard, SUPER NOVA biến thành dây cáp đôi loa nặng nhất có thể tưởng tượng được.
Trong cấu hình này, cáp tự hào với kích thước dây dẫn AWG 3 (26.8 mm²) có điện trở hiệu quả không tưởng với điện trở thấp gần 0.00066 Ohm trên mỗi mét.

Bi-wiring/bi-amping:
 Với bốn dây dẫn của nó không được ghép nối, SUPER NOVA trở thành một dây loa Bi-wiring/bi-amping. Tại đây, mỗi dây dẫn đo kích thước AWG 6 (13,4 mm²) với điện trở thấp gần như không đáng kể là 0,0013 Ohm trên mét của mỗi đầu. Sản xuất theo tiêu chuẩn cao nhất có thể và dựa trên hơn 25 năm kinh nghiệm trong thiết kế và sản xuất cáp, SUPER NOVA kết hợp các vật liệu chất lượng cao nhất và bảo vệ tuổi thọ tối đa.

As such The SUPER NOVA features:

  • Super-Copper-Silver Hybrid Conductors
    The SUPER NOVA’s four signal conductors are made of highest grade ultra-pure Matched Crystal Oxygen Free Copper strands, which are manufactured by means of a special extrusion process. In the same mechanical step a very pure protective solid silver layer is applied. In sharp contrast with the commonly used drawn copper covered with electroplated silver, this meticulous and advanced production process ensures maximum crystalline density and contact (conductance) without open pathways for corrosive impurities to enter. The same goes for the co-extruded protective solid silver layer, which, unlike electroplated silver, doesn’t contain any chemical residues; Avoiding the presence of impurities and blocking their gradual creeping in over time is the best defence against sound quality degradation. In addition, serving as an additional protection layer and further improving the signal transmission properties, each conductor is embedded in a conductive layer containing our renowned Linear Structured Carbon ®. The conductors are therefore named “Hybrid”.
    In short, The SUPER NOVA’s high tech Super-Copper-Silver Hybrid conductors ensure that the cable keeps its stunningly transparent sound!
 “... practically behaving like a superconductor,
 The SUPER NOVA does such a good job that it seems to be absent - it sounds as if the amplifier is directly connected to the speakers ...”
 A.J. van den Hul



  • Extremely Low Resistance and Signal Losses
    The SUPER NOVA’s extremely low electrical series resistance provides a wide open pathway between your amplifier(s) and speakers. The lower a speaker cable’s series resistance namely is, the more control the amplifier has over the speaker drivers’ movements and the less sound colouration will occur (see Cable FAQ point 16-3).
    Furthermore, when a speaker cable’s signal losses at high frequencies are discussed, the so-called “skin effect” (i.e. the increase of effective series resistance with frequency (see Cable FAQ point 9-5)) is often mentioned. With The SUPER NOVA such high frequency signal losses are virtually absent: The SUPER NOVA’s large conductor size, its stranding layout as well as the strands’ dense silver coating ensure that its effective series resistance remains highly constant and very low, even far beyond the audible frequency range.
    Fantastically tight bass, as well as natural, open and nonfatiguing mids and highs are yours to enjoy!
  •  Double Shielding
    The SUPER NOVA’s heavy twin layer shielding provides a perfect protection against penetration of radio frequency and other electromagnetic interference into your audio signals: Grounded to the amplifier, the shielding effectively blocks external noise from reaching the loudspeaker lines and entering your power amplifier’s signal (feedback) path. Furthermore, when using digital (switchmode) power amplifiers, any radiation of residual noise from the loudspeaker lines is prevented. The SUPER NOVA’s shielding also allows to ground newer loudspeaker types which are equipped with a separate ground connection. To make these ground connections, The SUPER NOVA comes fit with a shield connected ground lead at each side of the cable.
    Shortly stated, The SUPER NOVA’s double shielding helps to keep your system’s noise floor down, thereby allowing it to reveal more detail.

  • Moisture Protection
    Embedded between The SUPER NOVA’s conductors, special treated artificial filler fibres provide a perfect protection against moisture penetration. In applications where high humidities are present or can occur (e.g. tropical environments and car installations), moisture penetration normally can reduce cable lifespan as well as induce signal losses.

  • HULLIFLEX ® Jacket

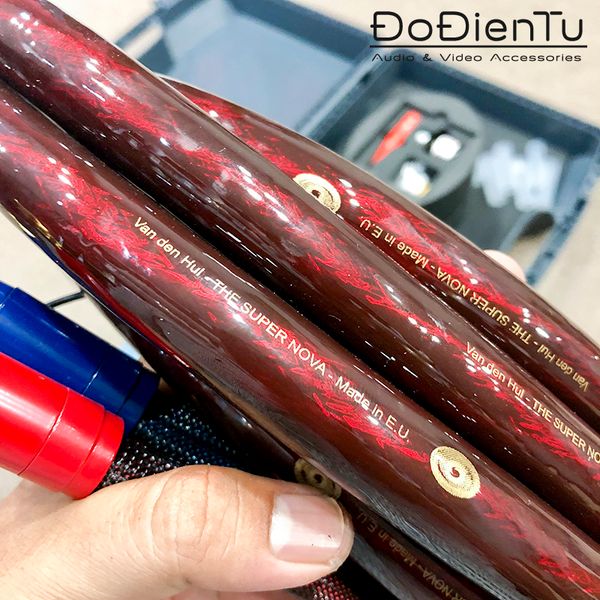

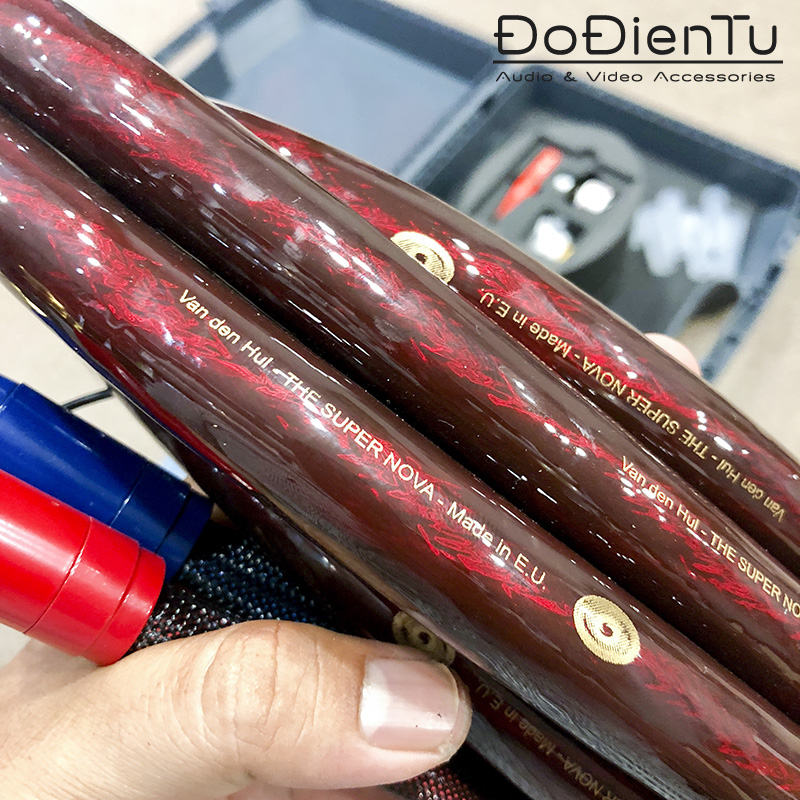

    The SUPER NOVA’s transparent ruby red outer jacket is made of our rugged and hard-wearing HULLIFLEX ® EHD, a plasticizer and PVC free insulation material. This jacket provides excellent protection against mechanical influences and environmental chemical agents. The result is a very stable sound quality and a long lifespan.

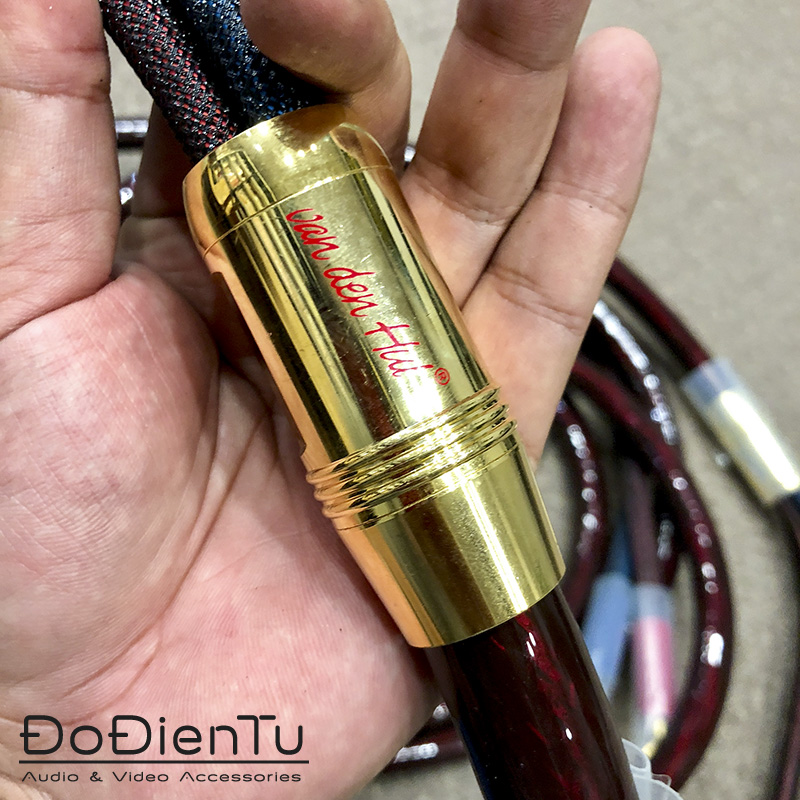

  • High Quality 24 Carat Gold Plated Connectors

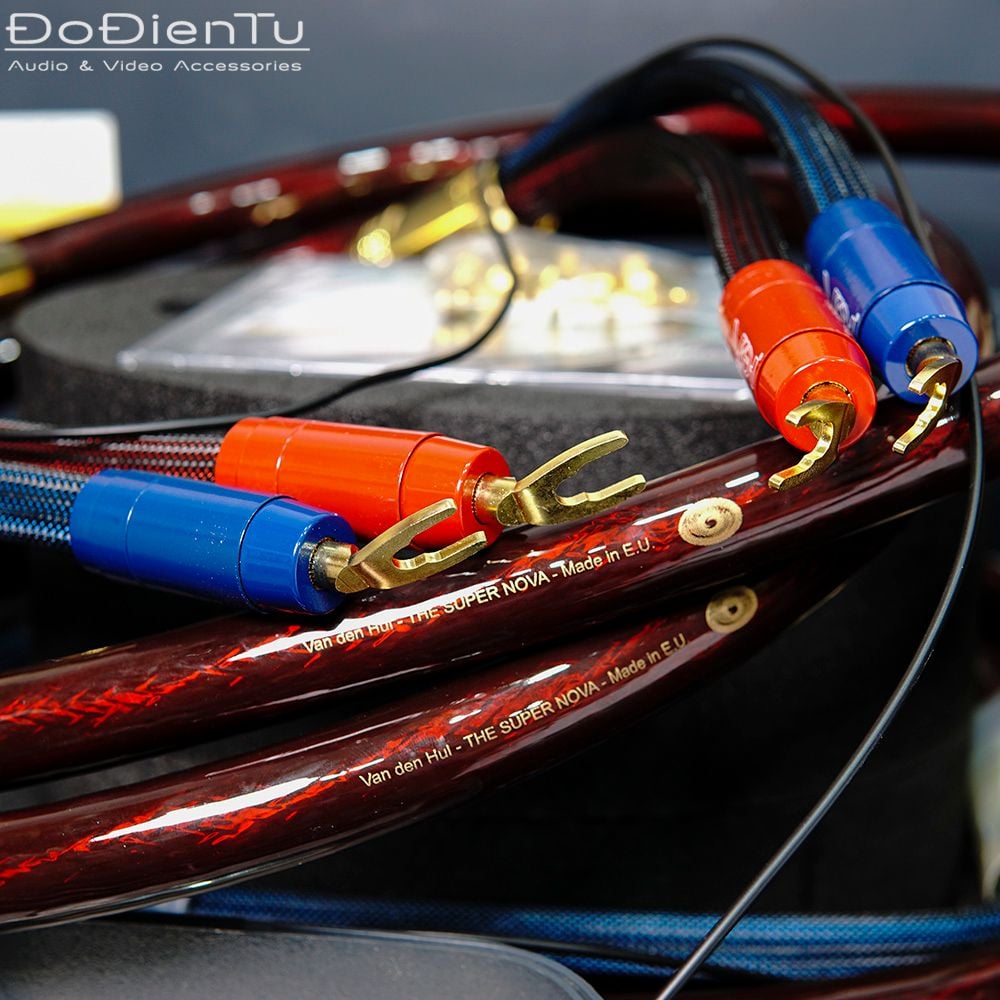

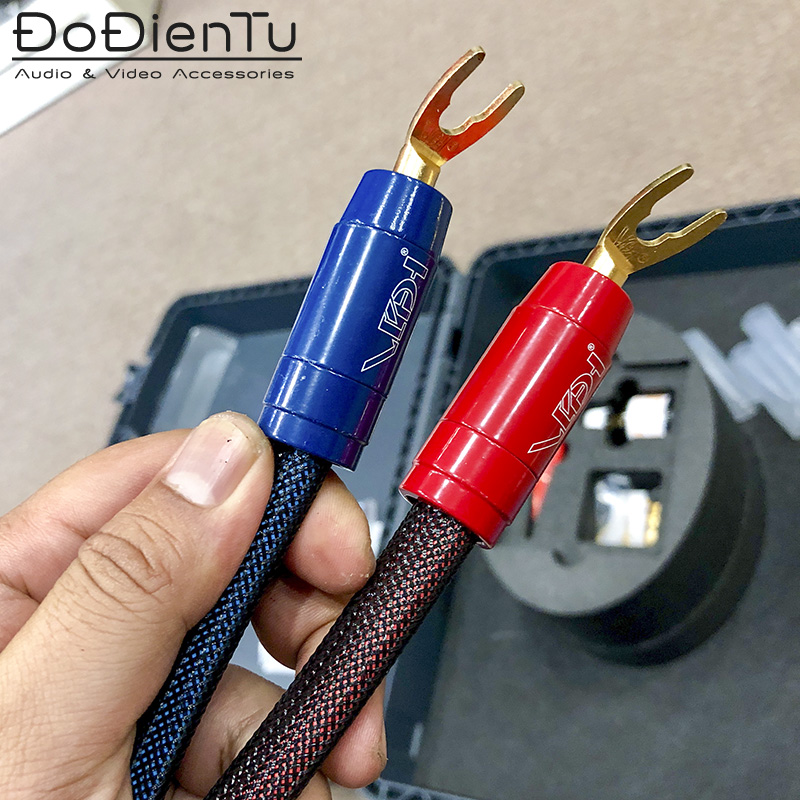

    Also the quality of the connectors makes a considerable contribution to a cable’s overall performance: Providing a reliable and durable connection to your amplifier and loudspeaker binding posts, The SUPER NOVA comes standardly fit with either our angled spade (fork) or banana tip Bus type Universal Speaker Connectors soldered with silver solder. These connectors are designed to handle massive currents and all connector parts are heavy 24 carat gold plated. Oxidation is therefore almost impossible and the contact quality is maintained over a long period of use.


With its super size advanced technology conductors, its ultra-transparent conductive power, its massive control over your speakers and its stunningly detailed and open sound, The SUPER NOVA has all the qualities on board to be entitled a TRUE REFERENCE GRADE loudspeaker cable.

LET THE SUPER NOVA EXPAND YOUR SOUNDSTAGE AND ILLUMINATE YOUR LISTENING EXPERIENCE !

THE SUPER NOVA (HALOGEN FREE)
materialHybrid
product categorycar hifi - Speaker cable
product categoryspeaker cable - Quad-lead, Bi wiring, Bi amping, Top-end
cable typeShielded quadruple conductor
conductor materialHYBRID: High purity dense Silver coated high purity Matched Crystal OFC + Linear Structured Carbon ® saturated layer(s)
design purposeHighest quality loudspeaker single, bi-wiring and bi-amping connections / High-end home, car hi-fi and PA applications
eff conductorEach signal lead: 13.4 mm² / AWG 6 / 418
Two signal leads combined: 26.8 mm² / AWG 3 / 836
Screen: 9.00 mm² / AWG 7.7 / 280 + Cu tape
external diameter20.0 mm.
jacket colorsTransparent ruby red
resistanceEach signal lead: 1.3 Ohm/km.
Two signal leads combined: 0.66 Ohm/km.
Screen: 1.9 Ohm/km.
capacitance230 pF/m.
insulation

Cores: Polypropylene; Jacket: HULLIFLEX ® EHD / 300 Vrms min.

connector types

When combining leads into pairs (e.g. as twin lead speaker cable or at amplifier side of bi-wiring cable): Our 10.0 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our 20.0 mm. Ø cable entrance diameter BERRI Bus Connectors; Custom mountable on ordered lengths;
For termination of individual leads: Our 6.5 mm. Ø cable entrance diameter Bus type Universal Speaker Connectors or our 10.0 mm. Ø cable entrance diameter BERRI Bus Connectors; Custom mountable on ordered lengths.

standard sales units

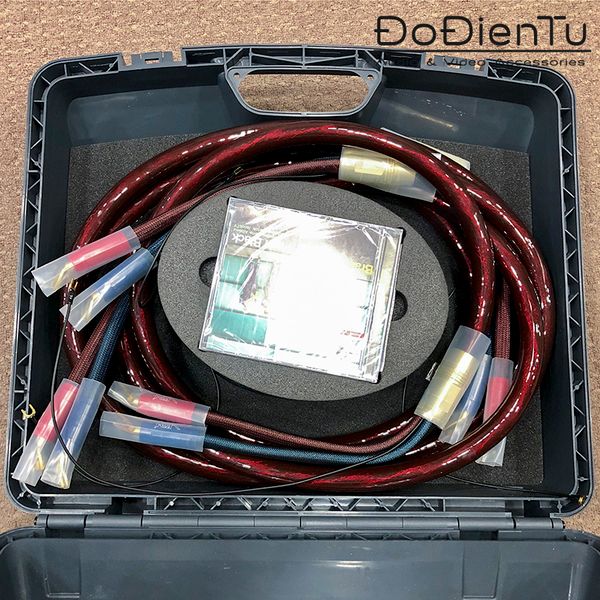

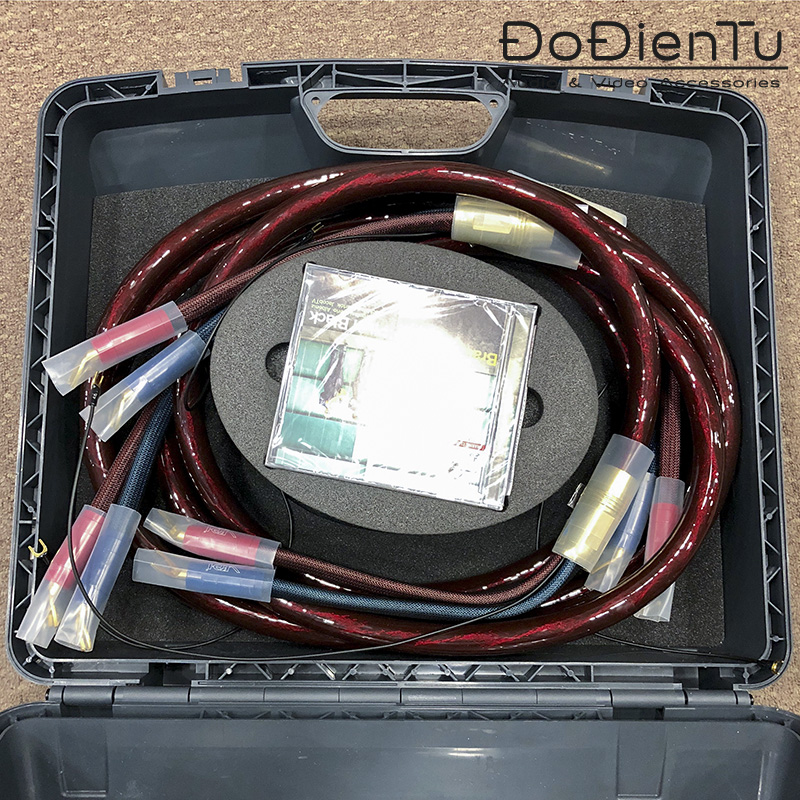

Available in any specified length. With connectors mounted the cable is also available in stereo pairs (i.e. two separate cables) in the following standard configurations:
Bi-amping configuration: Each of both cables having 4 connectors at the amplifier side and 4 connectors at the speaker side.
Bi-wiring configuration: Each of both cables having 2 connectors at the amplifier side and 4 connectors at the speaker side.
Normal wiring configuration: Each of both cables having 2 connectors at the amplifier side and 2 connectors at the speaker side.

remarks

Self mounting of connectors is not advised since special soldering equipment is required; Our custom connector mounting service is available.

Mounting:

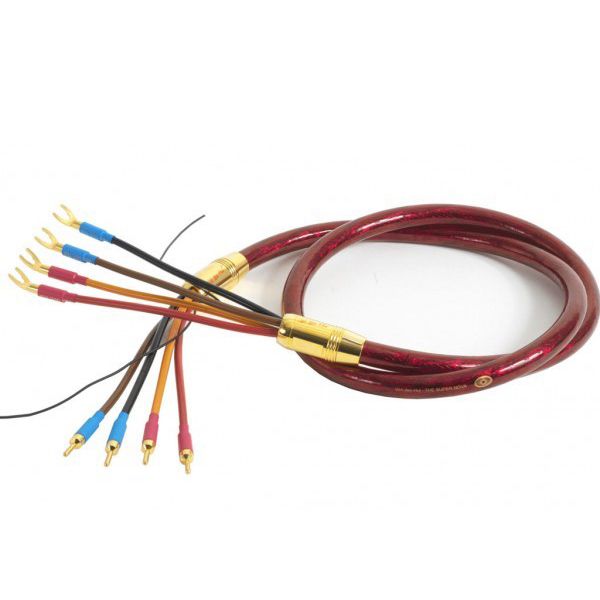

When twin lead wiring a loudspeaker, both red and orange conductors should be combined to form the loudspeaker + connection. Likewise, both black and brown conductors should be combined to form the loudspeaker – connection.
When bi-wiring or bi-amping a loudspeaker, the red and black conductor pair is used to connect one speaker section and the orange and brown conductor pair to connect the other speaker section.
If your loudspeakers are not equipped with ground terminals, the cable screen should be connected to the power amplifier’s dedicated ground terminal (or chassis) and should be left disconnected at the loudspeaker end. If it is impossible to connect the screen to any ground terminal (or chassis screw) at the amplifier, the screen should be connected to the amplifier’s loudspeaker – terminal of the channel in question.
If your loudspeakers are equipped with ground terminals, the cable screen should connect between the power amplifier and loudspeaker’s dedicated ground terminals.
Our The NOVA is a thinner 4x(8.4 mm² / AWG 8) version of this cable.
