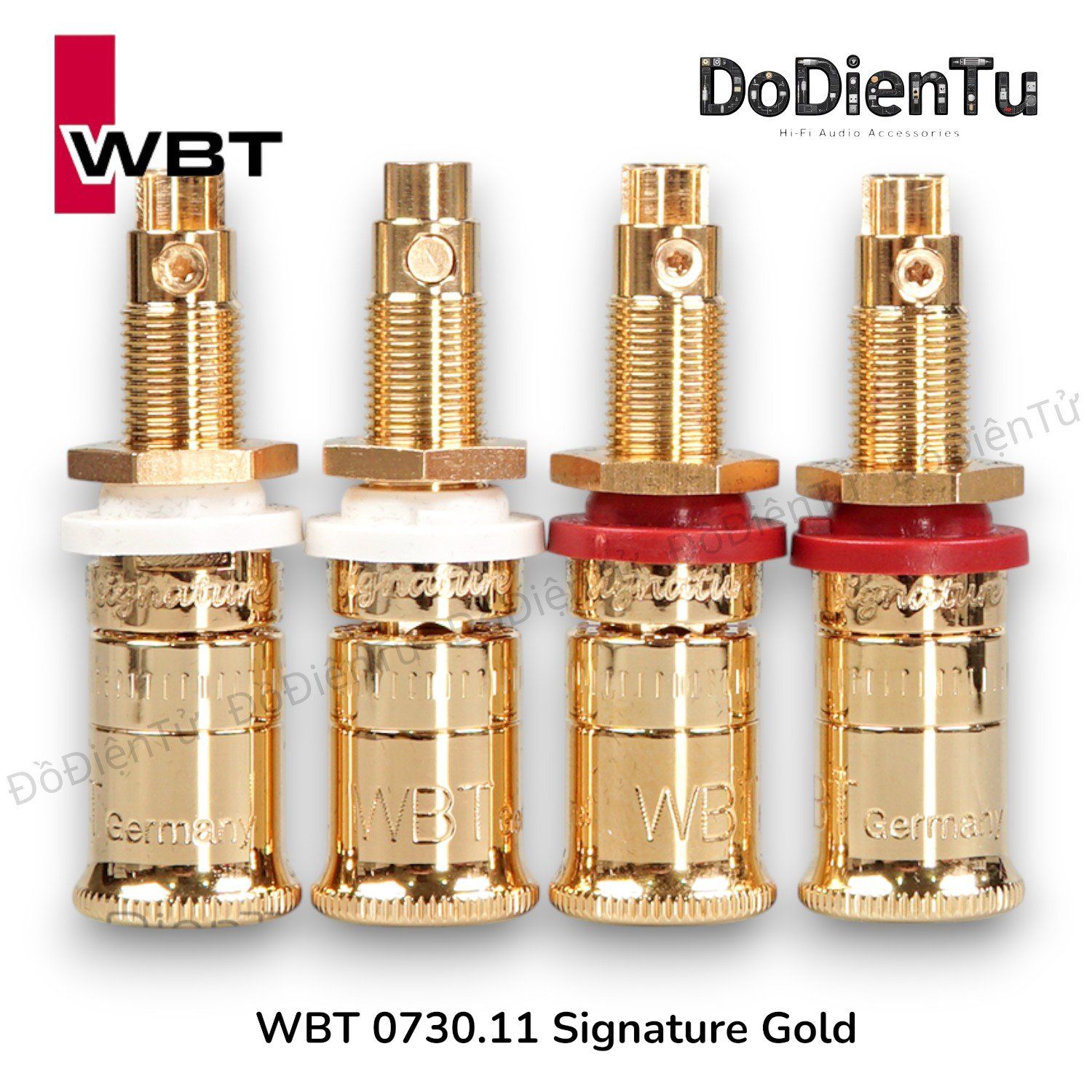

WBT 0730.11 Signature Gold

~~5,800,000₫~~ 5,000,000₫

Chi tiết sản phẩm

Dòng Topline cao cấp nhất của WBT. Signature
- Lớp xi mạ nhiều lớp đặc biệt, mạ vàng 24k , chịu áp lực mài mòn cao.

- Có thể bắt được dạng hàn hoặc vít.
- Cơ cấu chỉ có 2 phần, cho lực siết rất mạnh.
- Chất liệu bằng đồng nguyên chất. Chịu dòng max 70A

Extremely high contact pressure for spades thanks to fine thread and cross-milled surface
Pat. two-piece clamping nut for maximum strength of connection
Solder or crimp connection with Torx screw
24 carat direct gold plating (nickel-free)
Max. constant current 70 A
Twist-proof mounting
Puzzle plate system

Specifications:

Conductor cross section (max.):	outside: 6 mm² (9 AWG) inside: 10 mm² (7 AWG)
Connection technology:	outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping inside: crimping or soldering
Wall thickness:	0.1 - 6 mm
Identification:	red/white
Installation:	with the spacer WBT-9404 also as a double terminal
Recommended tool:	Torx T.6 wrench WBT-0488 (supplied with each end consumer package) Torque screwdriver WBT-0481 for professional OEM mounting Crimping pliers WBT-0403 also see crimping set WBT-0411
