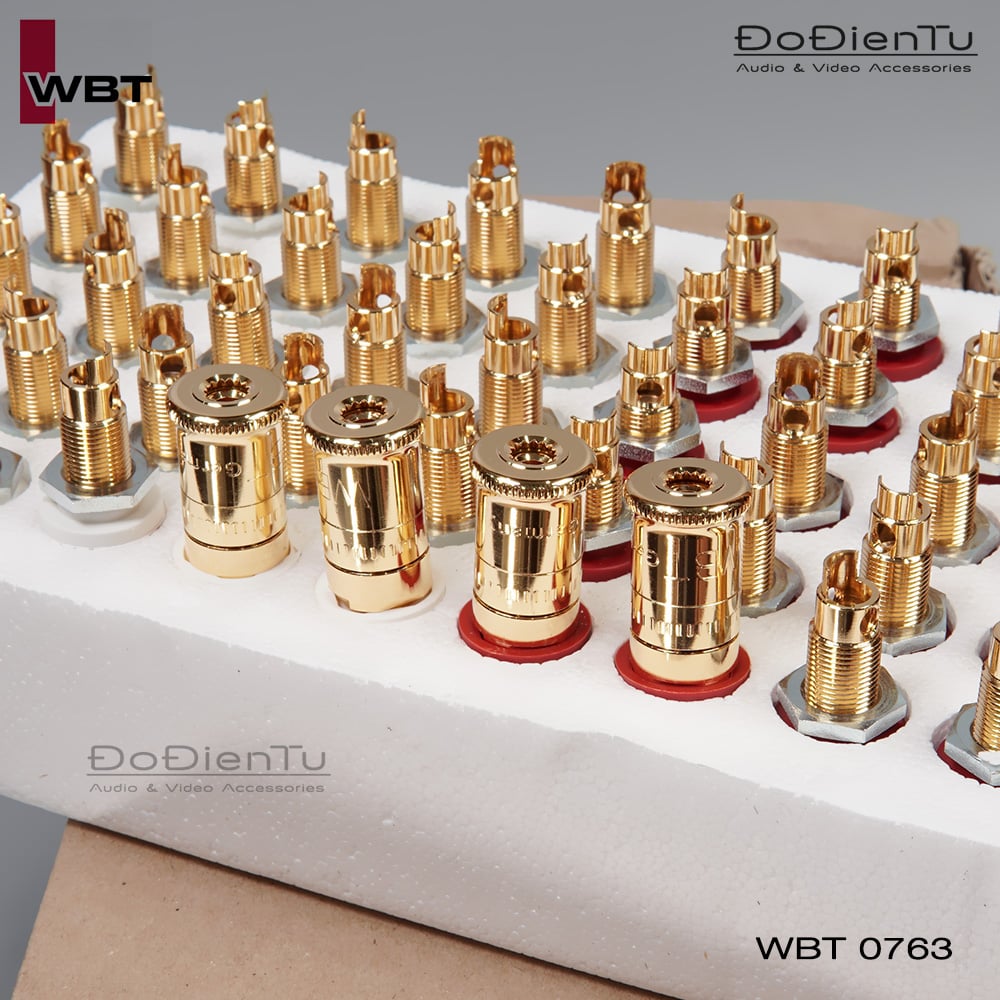

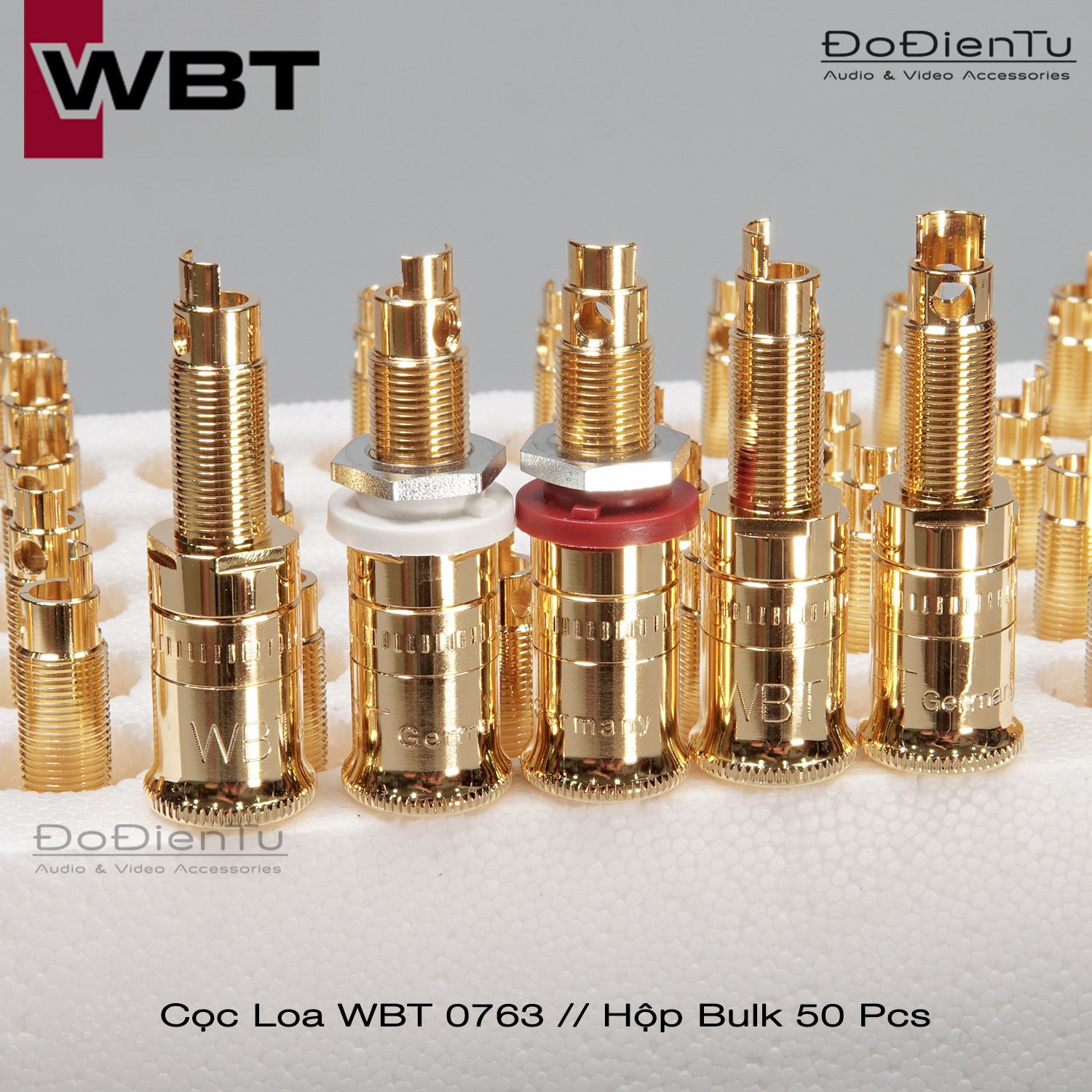

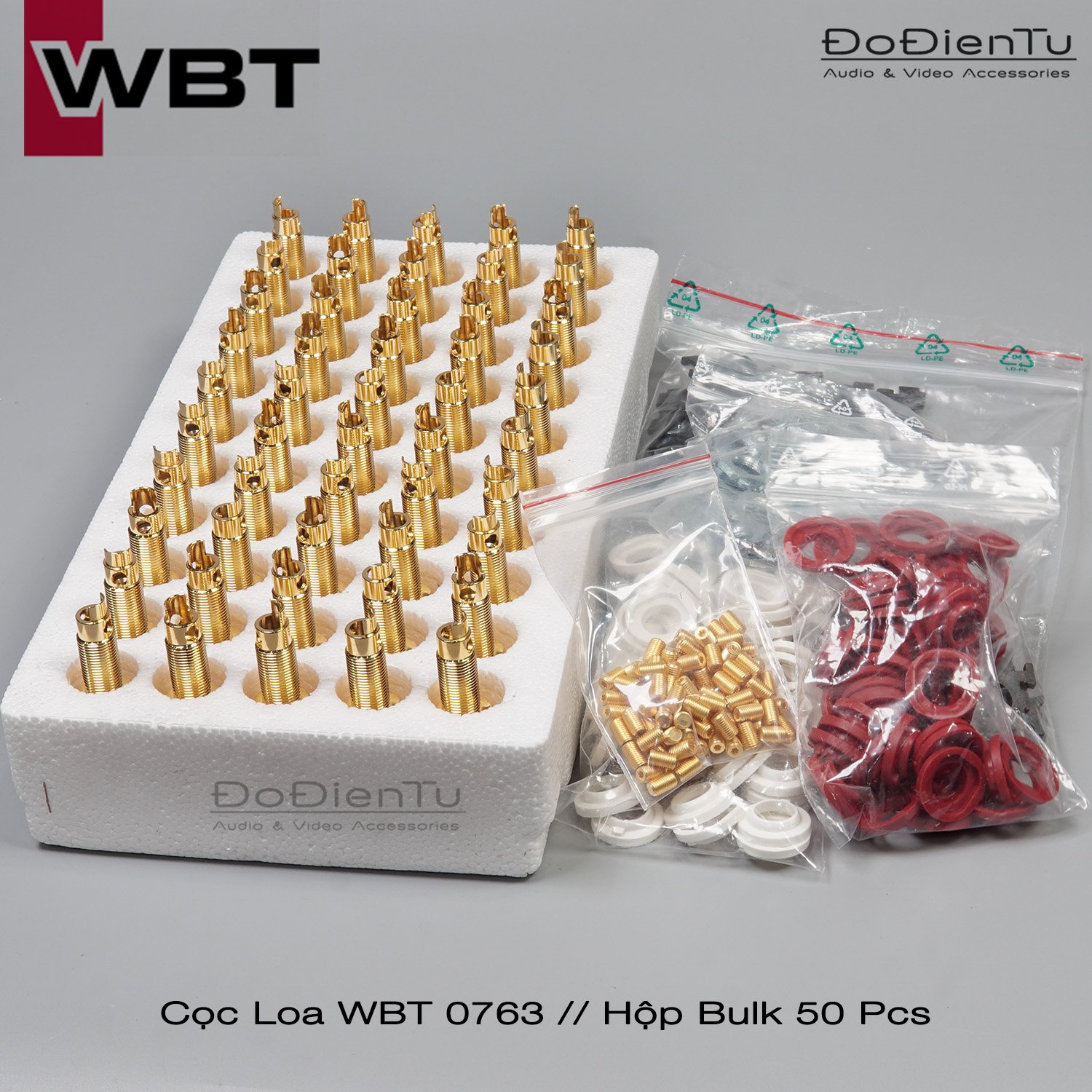

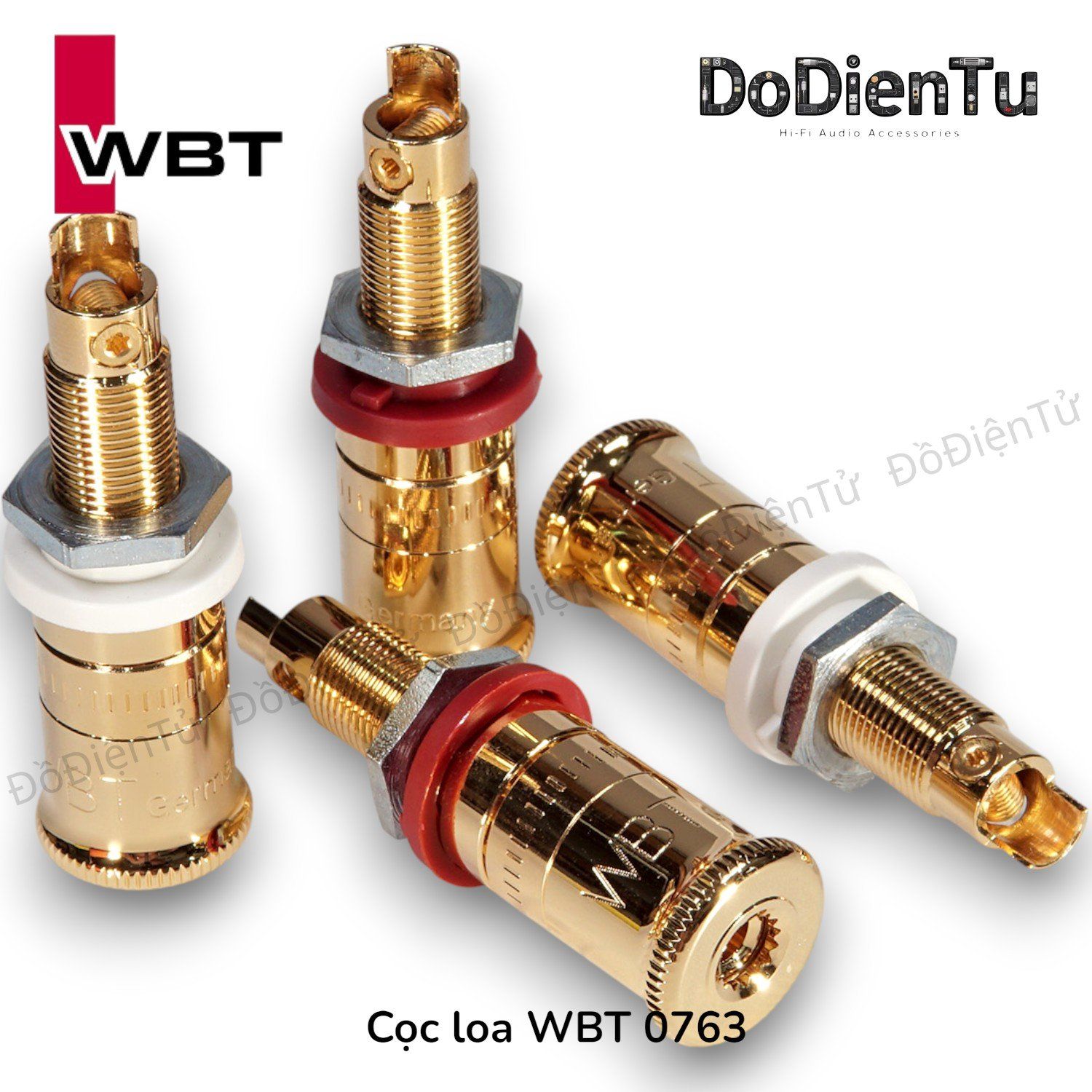

WBT 0763 ( Set of 4 )

  • Extremely high contact pressure for spades thanks to fine thread and cross-milled surface
  • Pat. two-piece clamping nut for maximum strength of connection
  • Solder or crimp connection
  • 24 carat multi layer gold plating
  • Max. constant current 70 A
  • Twist-proof mounting

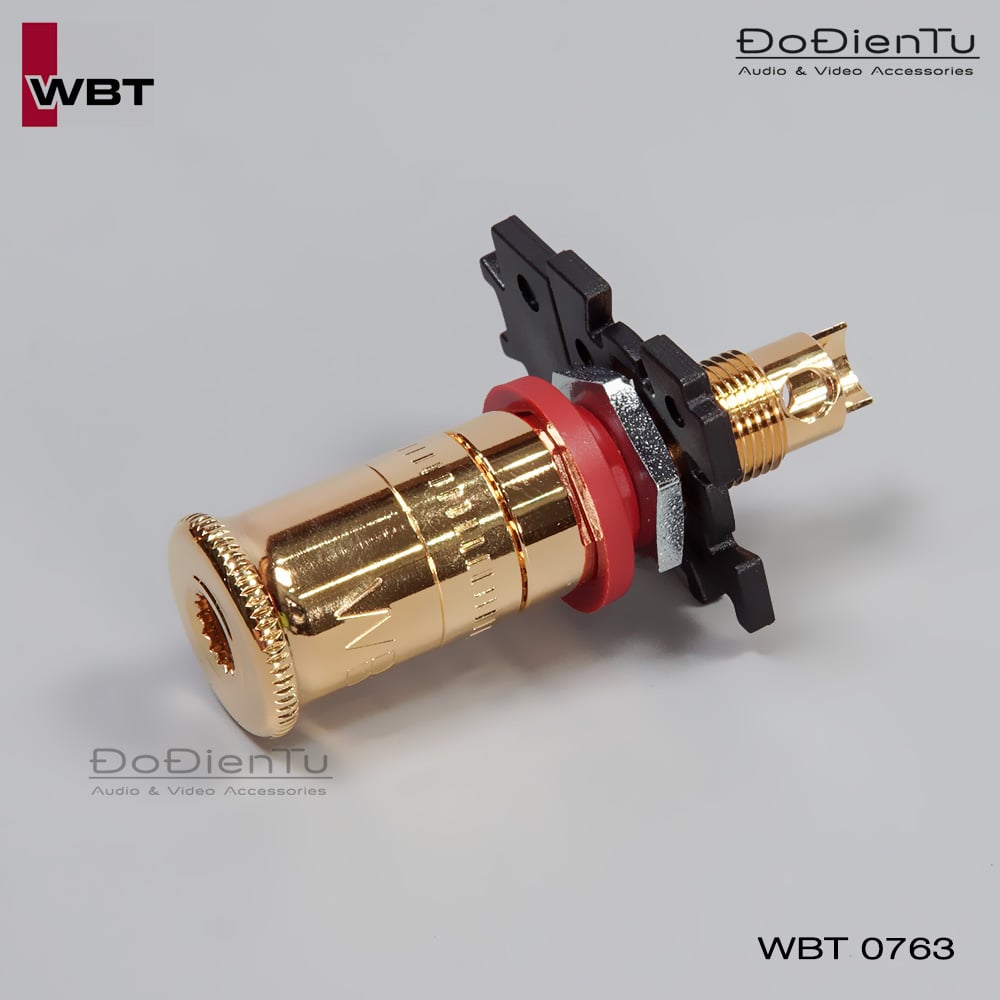

  • Puzzle plate system
2,500,000₫
Sản phẩm thuộc dòng Midline , cấp dưới của WBT-0730
- Kết cấu hợp kim đồng, mvàng hoàn toàn.
- Có th
ể bắt được dng hàn hoặc vít.
- M
vàng 24k nhiều lớp. - Chu dòng max 70A

  • Extremely high contact pressure for spades thanks to fine thread and cross-milled surface
  • Pat. two-piece clamping nut for maximum strength of connection
  • Solder or crimp connection
  • 24 carat multi layer gold plating
  • Max. constant current 70 A
  • Twist-proof mounting
  • Puzzle plate system

Specifications:

Conductor cross section (max.):outside: 6 mm² (9 AWG)
inside: 10 mm² (7 AWG)
Connection technology:outside: 4 mm banana plug, spades (6 - 8 mm spade), crimping

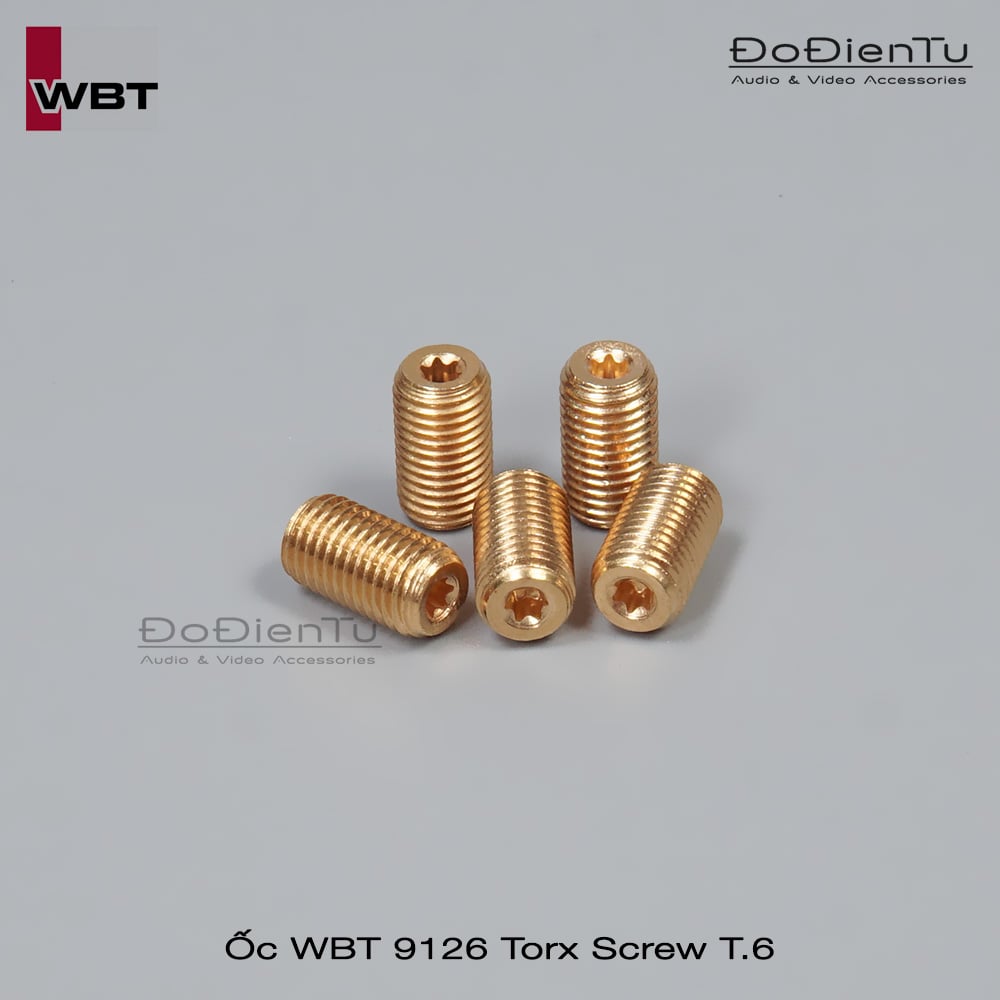

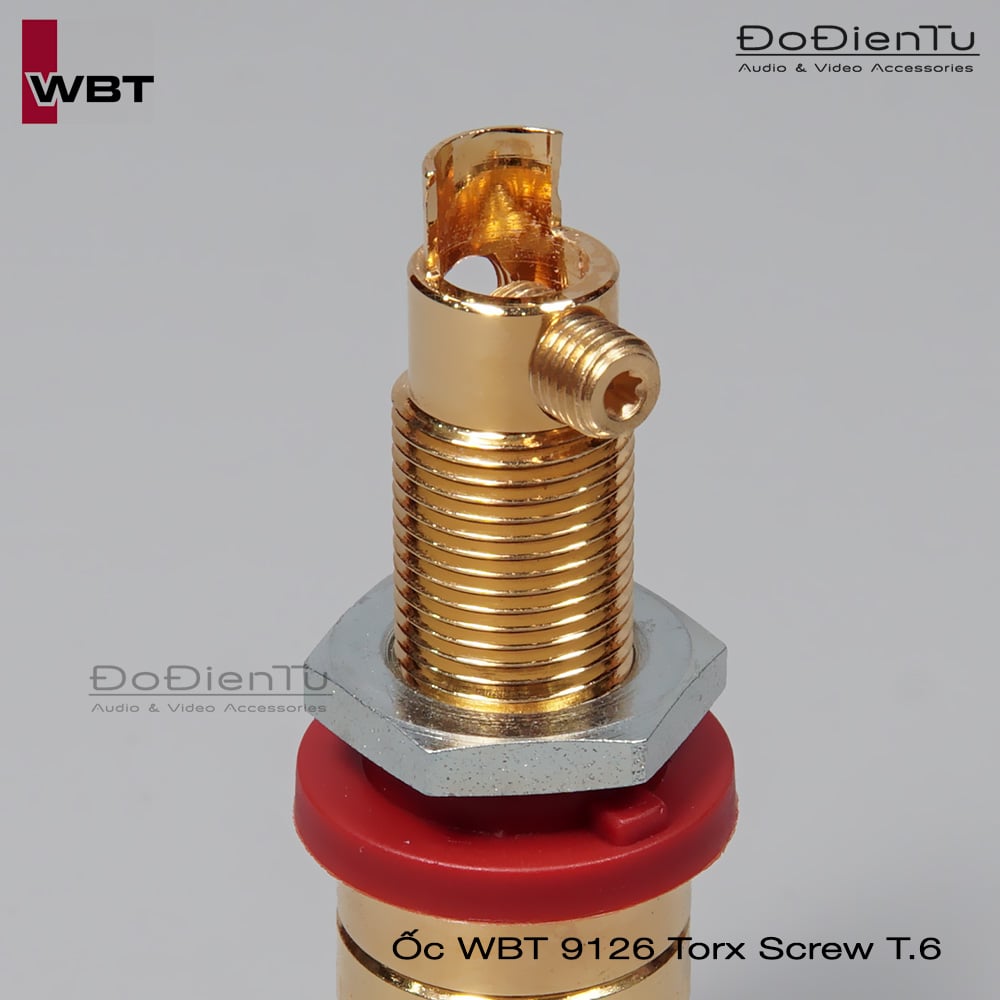

inside: crimping (T.6 Torx screw required) or soldering
Wall thickness:0.1 - 10 mm
Identification:red, white or black
Installation:with the spacer WBT-9404 also as a double terminal
Recommended tool:
  • Torx T.6 wrench WBT-0488
  • Torque screwdriver WBT-0481 for professional OEM mounting
  • Crimping pliers WBT-0403
    also see crimping set WBT-0411
