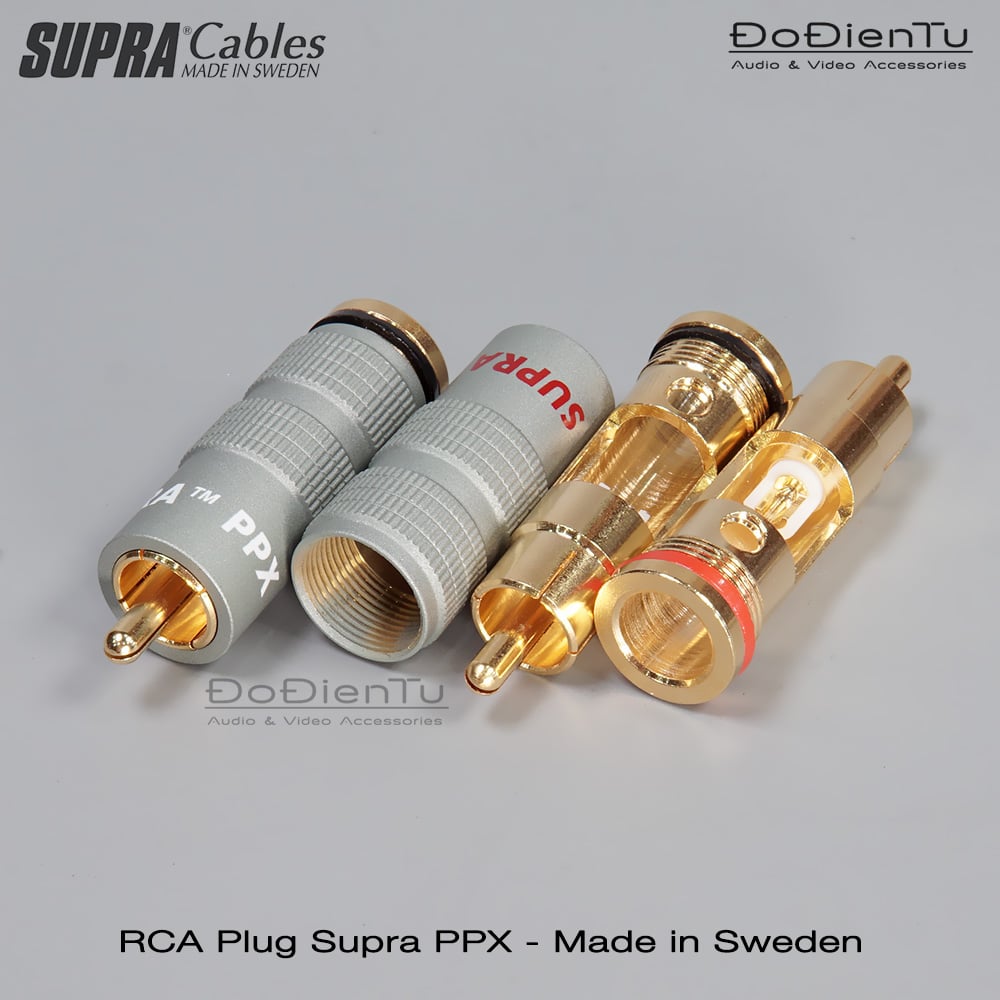

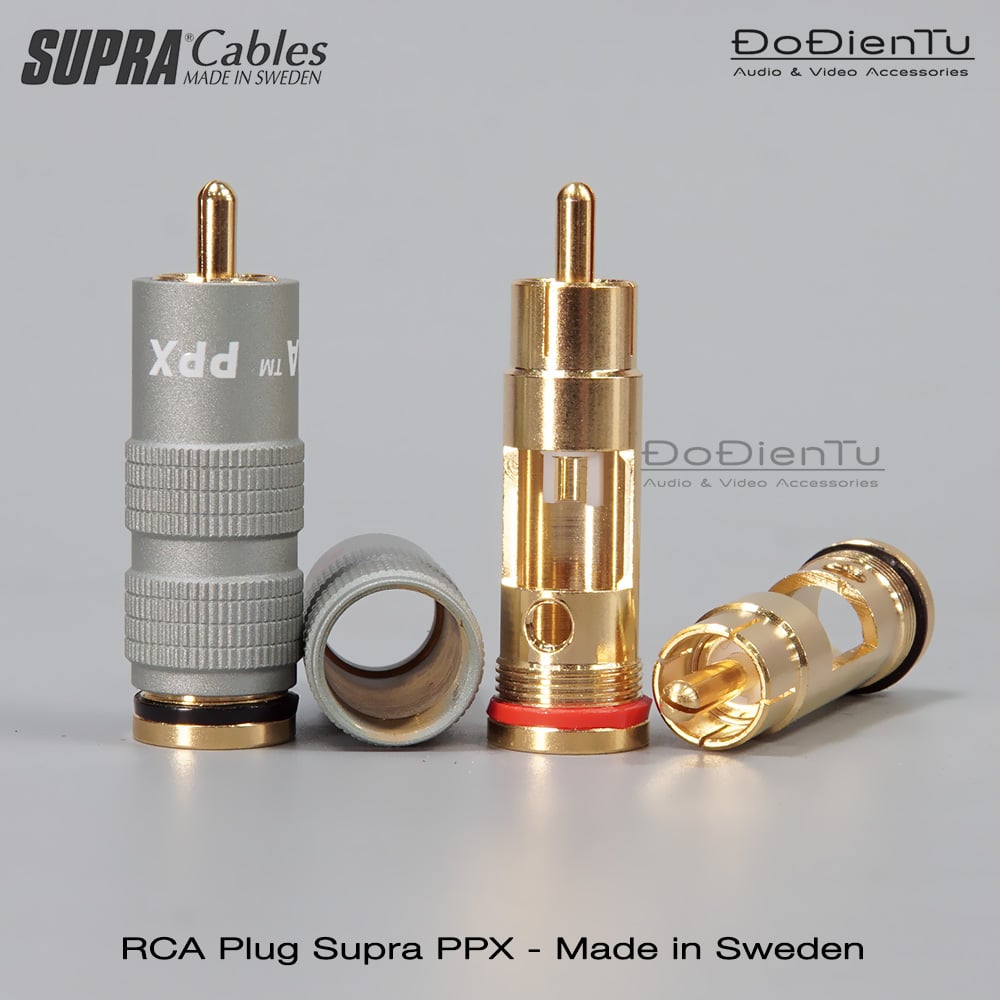

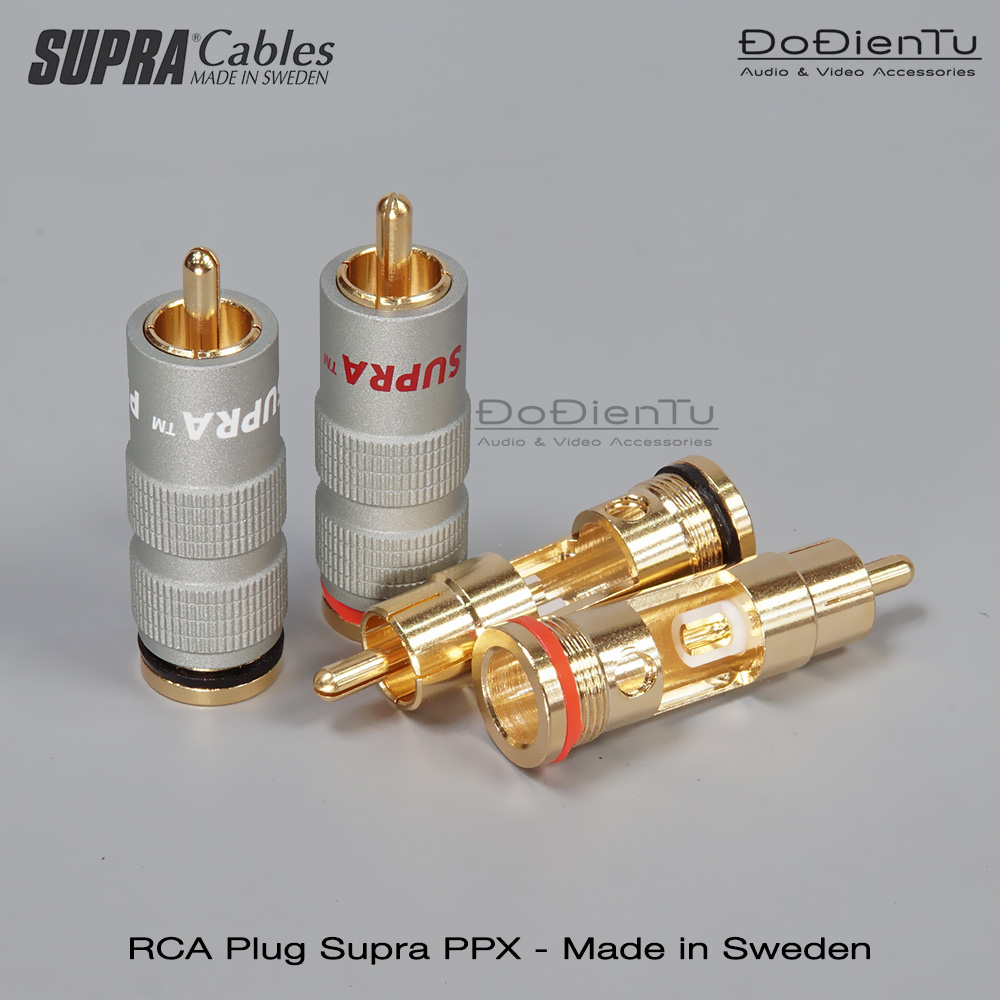

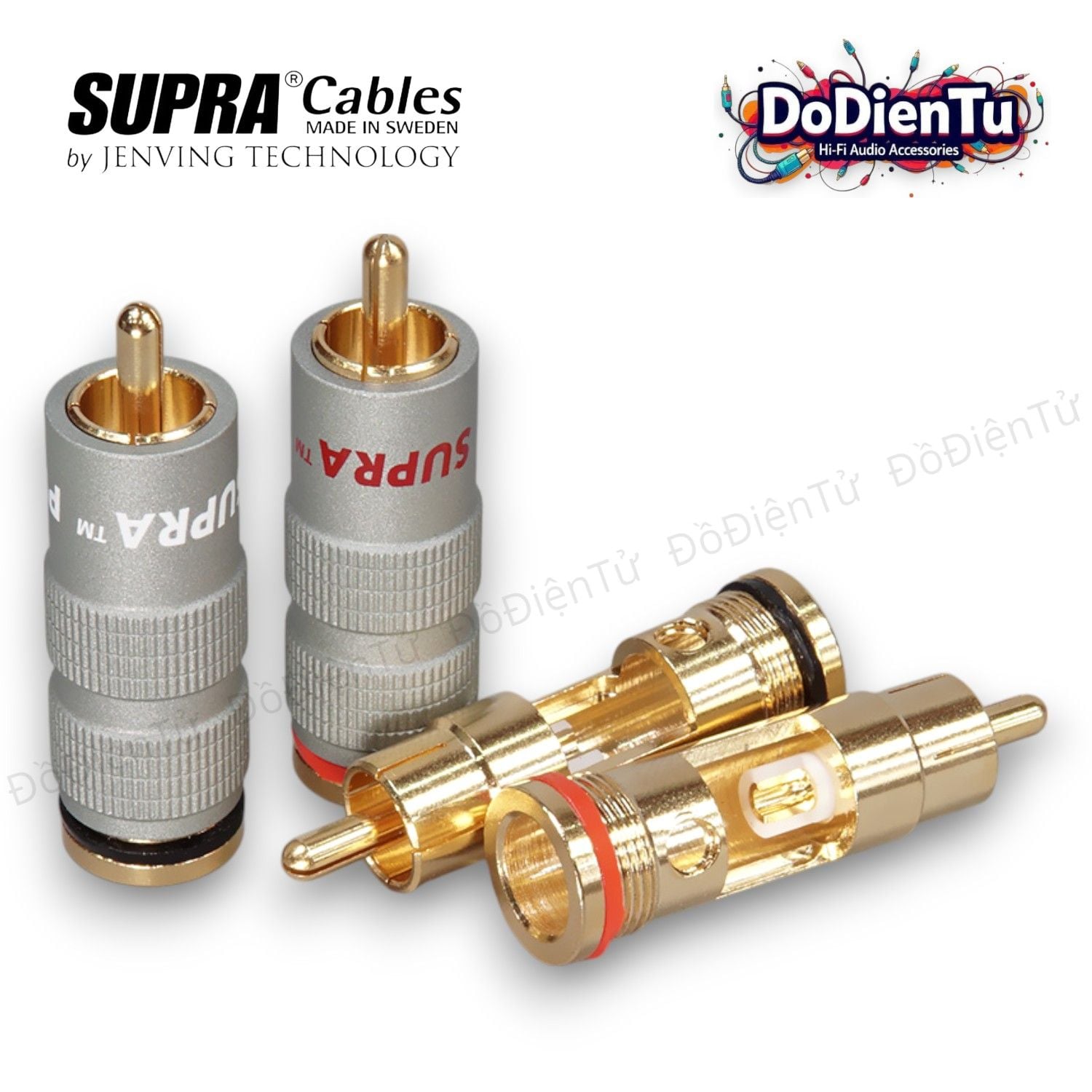

Supra PPX RCA
24K Gold plated RCA (Radio Corporation of America) contact with good electrical properties. Fully shielded, RFI proof, robust design providing for cables upp to Ø8.5 mm. Mechanical cable strain relief with a screw clamp and contact by expanding fixation to any equipment with RCA female chassis contacts. Features a soldering slot for 0 (minus) signal lead, also with screen drain wire and a metal jacket that is front mounted. A budget alternative to our famous Supra PPSL and a suitable choice whenever capacity to fit wide cables is desired.
Mechanical specification
Quantity per package | One (red and white, in total two pcs) | pair |
Contact type | RCA male | |
Conductor and contact material | 24K Gold plated Copper | |
Insulation | PTFE | |
Jacket | Aluminum front mounted | |
Contact fixation | Expanding outer ring | |
Cable fixation | Solder | |
Strain relief1) | Screw clamp | |
Maximum cable diameter | < 8.5 | mm |
Dimensions (Ø x L) | 13 x 43 | mm |
