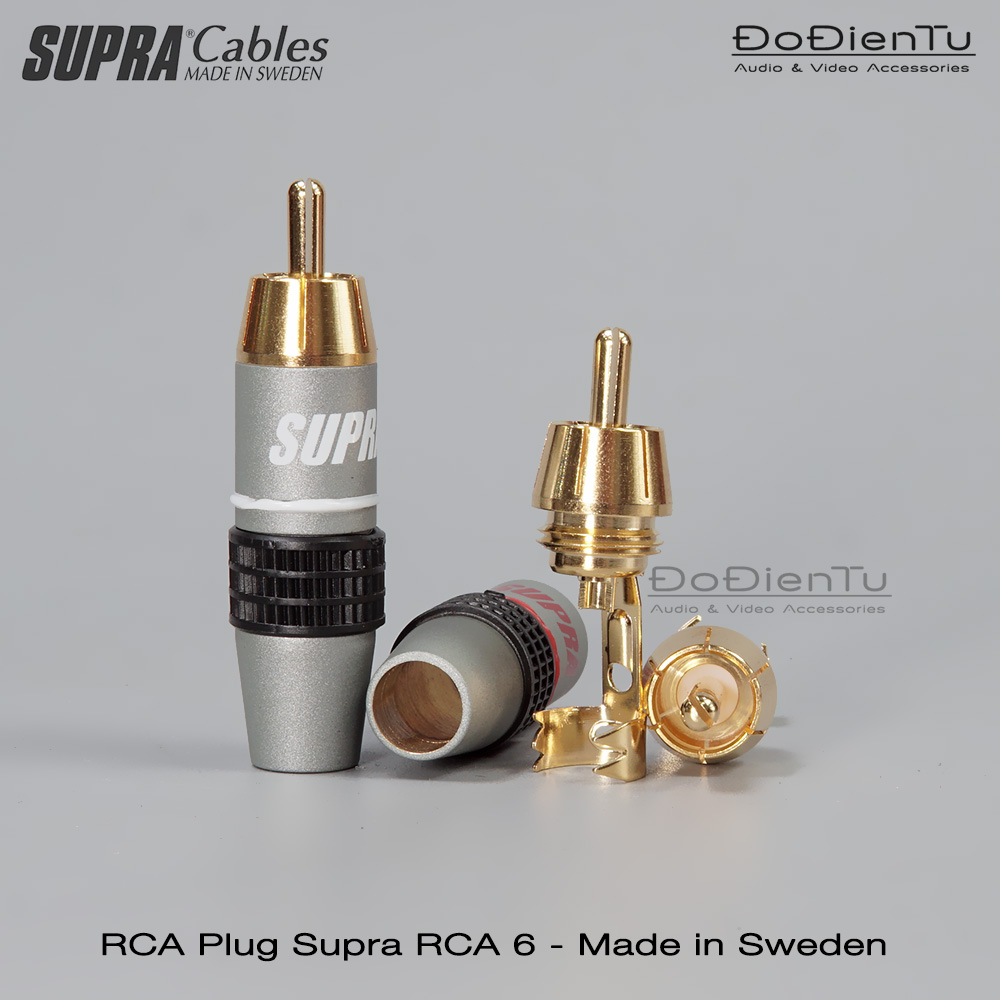

Phích cắm RCA Plug Supra RCA 6

  • Thương hiệu : Supra
  • Xuất xứ : Made In Sweden
  • Chủng loại : đầu jack RCA
175,000₫ 150,001₫

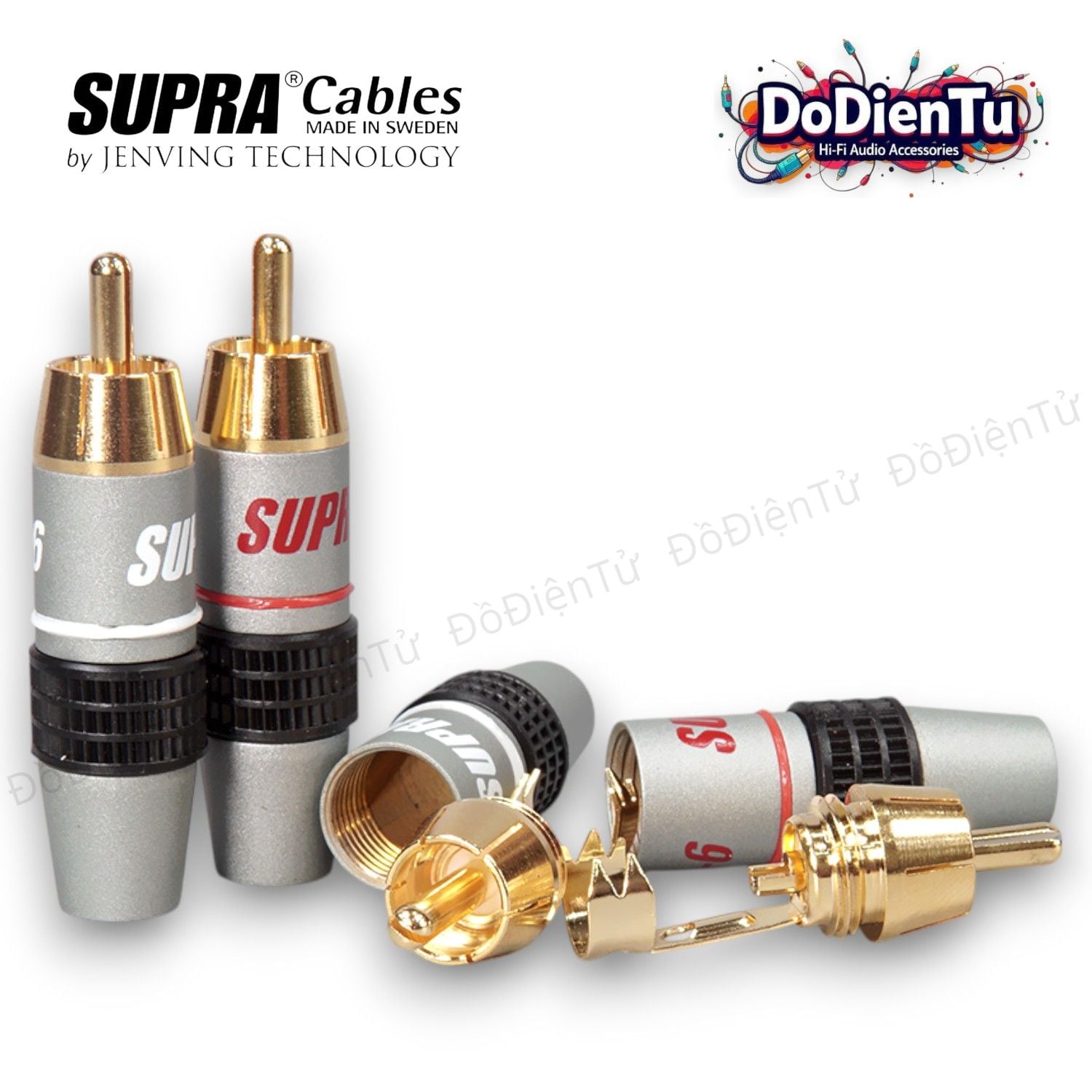

Supra RCA-6

24K Gold plated RCA (Radio Corporation of America) contact for cable widths between 5 and 6 mm. Mechanical klamp strain relief. Expansion clamping force to the chassis female RCA. RFI proof thanks to the all metal shielding. Color markings for channel separation.

One (1) pair (red and white) per package.

Mechanical specification

Quantity per packageone (1) (red and white)pair
Contact typeRCA male
Conductor and contact material24K Gold plated Copper
InsulationPTFE
Housing sleeveAluminum rear mounted1)
Contact fixation Expanding outer ring
Cable fixationSolder
Strain reliefSheet metal clamp ring
Maximum cable diameter5 - 6mm
Dimensions (Ø x L)12 x 50mm



1) Remember to put the RCA contact housing sleeve on prior to mounting the contact body and soldering the leads.
